Name		Unit	HP79-40T	HP79-200T	HP79-250T	HP79-500T
Nominal Pressure		KN	400	2000	2500	5000
Ejection Force		KN	160	400	400
Max. Working Pressure of Liquid		Mpa	25	25	25	25
Slide Stroke		mm	450	700	700	900
Ejection Trip		mm	150	250	250	350
Opening Height		mm	1000	1200	1200	1750
Slider Stroke Speed	Downlink	mm/s	160	100	100	100
	Jobs	mm/s	20-25	12-18	8-12	10-15
	Return journey	mm/s	120	70	70	70
Cylinder Speed	Eject	mm/s	60	60	60	80
Cylinder Speed	Return	mm/s	100	120	120	160
Table Size	Left and Right	mm	500	1000	1000	1400
Table Size	Front and Back	mm	460	900	900	1400
Machine Dimensions	Length	mm	2200	3270	5100	6275
	Width	mm	1250	3100	4200	2785
	Height	mm	3300	3725	4545	5040
Total Motor Power		kw	5.5	22	22	50

Introduction:

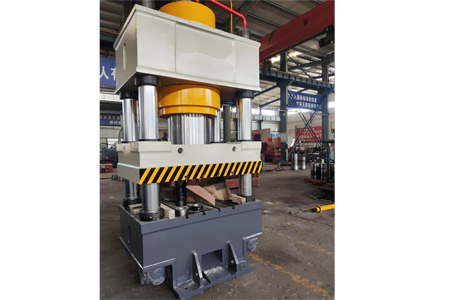

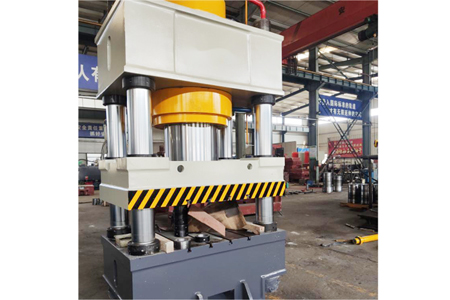

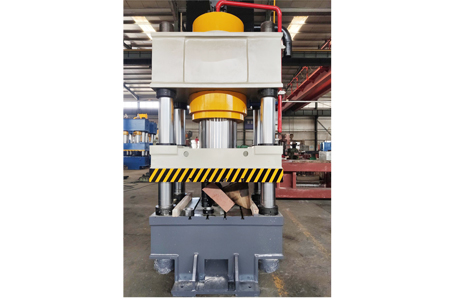

This series four-colunm hydraulic presses is specially designed for the press forming process of powder products and has the following characteristics;
1.Diverse structure: four columns, two columns, single column, frame type;
2.Press tonnage series: 6-4000 tons (special models can be customized)
3.Complete control functions: manual, semi-automatic, fully automatic, imported PLC plus touch screen;
4.Rich pressing technology; unique adjustable pressure relief function, powder compaction function, two-way pressing and floating pressing optional hydraulic, friction, mechanical floating random equipment, general demoulding and protection demoulding;
5.Choice, automatic feeding and automatic combination;
6.The pressing precision is stable: the stroke switch control, the mechanical limit, the grating ruler limit, and the pressing precision can be to 0.05mm;
7.The control system is open: the tonnage, speed, stroke. time, pressure, and demoulding mode can be adjusted according to user needs;
8.It can be adapted to the molding of the upper three steps and four steps, and can be equipped with the corresponding mold base.
