YQ32-1250T 1250 Tons Four-column Hydraulic Press Machine
Maximum liquid pressure:25Mpa
Slider stroke:900mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | YQ32-1250T |
| Maximum liquid pressure (Mpa) | 25 |
| Slider stroke (mm) | 900 |
| Maximum opening height (mm) | 1600 |
| Table size (mm) | 1700*1600 |
| Down speed of empty range (mm/s) | 120 |
| Working speed (mm/s) | 5-10 |
| Return speed (mm/s) | 70 |
| Motor power (kw) | 37*2 |
| Oil pump displacement (ml/R) | 160*2 |
| Jacking force (T) | 200 |
| Ejection stroke (mm) | 450 |
| Approximate weight (T) | 42.5 |
Machine Introduction:
1250 tons of three beams and four columns hydraulic press adopts three beams and four columns structure, the pressure is 1250T, is a wide range of applications of pressure machinery, suitable for a variety of plastic material pressing process, such as stamping, bending, flanging, thin plate parts of the stretching, molding, punching, bending, and so on. It can also be engaged in calibration, press fitting, wheel molding, plastic products and powder products press molding.
Structure overview:

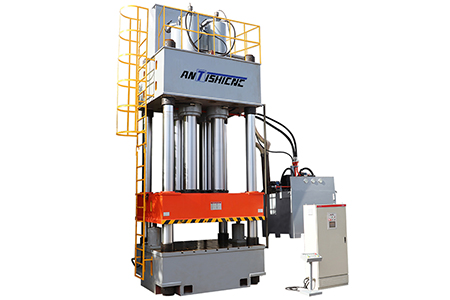

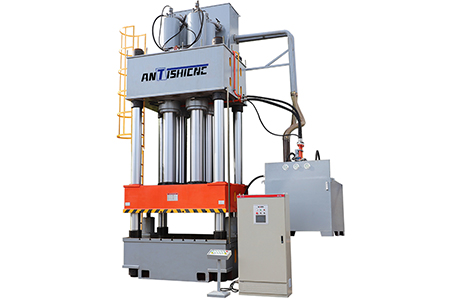

1.The body of the machine adopts three-beam and four-column structure: from the upper crossbar, slider, worktable, column, master cylinder, hydraulic power system and electrical system and other components. The upper crossbeam, slider and worktable are welded with high quality steel plate, and after welding, the welding stress is eliminated by high-frequency vibration. The column of the hydraulic press is made of high quality 45# steel, and the surface is mid-frequency quenched and chrome-plated.
2.1250tons of three-beam four-column hydraulic press cylinder tonnage is achieved by a piston cylinder, the cylinder body is high-quality forged steel, piston rod surface by intermediate frequency quenching treatment, high hardness, long service life. The main seals of the cylinder adopt high-quality seals to ensure reliable sealing.
3.1250 tons of three-beam four-column hydraulic press has T-slots on the working table and slider, which is convenient for users to install the mold.
Features:
1.Computer optimized structure design, three-beam four-column structure, simple, economical and practical;
2.Hydraulic control adopts cartridge valve integrated system, reliable action, long service life, small hydraulic shock, reducing the connection pipeline and leakage point;

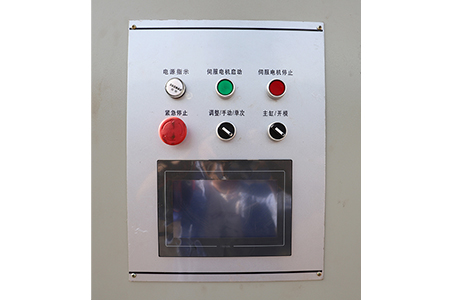

3.Independent electrical control system, reliable, intuitive action, easy maintenance;
4.Centralized control by push button, with adjustment and semi-automatic operation;
5.Through the operation panel selection, can realize the fixed range, fixed pressure two kinds of forming process, and has the pressure preservation delay time and other functions;
6.The working pressure of the slider, the stroke range of no-load fast downward and slow working in can be adjusted according to the process needs.
Operation mode:
1.With pointing and semi-automatic operation mode.
2.Slider stroke is adjusted by stroke control device.
3.In addition to the buttons on the operating table to complete all the actions of the press, there should be “two-handed pressing”, “return”, “stop”, “emergency stop” and other buttons. Buttons such as “stop”, “emergency stop”, etc.
Safety protection devices:
1.Set the emergency stop button, press the emergency stop button, the press immediately stop the power stationary.
2.The slider is equipped with limit switches at the upper and lower limits.
3.Hydraulic support insurance circuit is set in the lower chamber of piston type cylinder.
