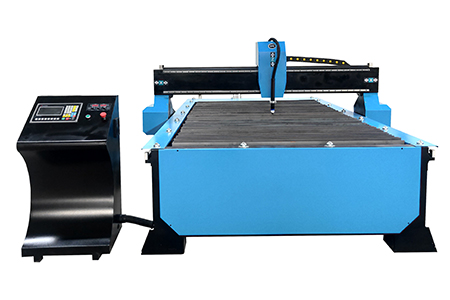

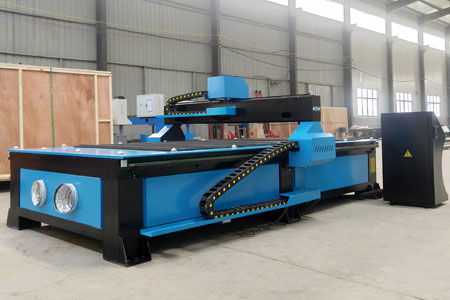

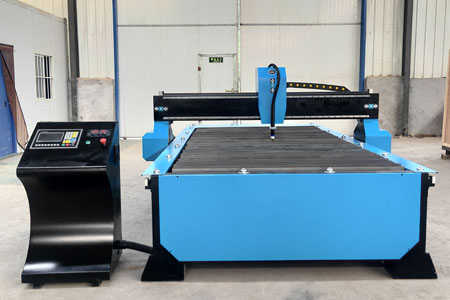

Plasma Cutting Machine 1560 200A

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Model 1560 200A
X,Y working area 1500*6000mm
Z working area 150mm
Packing dimension 6950mm*2280mm*1850mm
Lathe bed Very thick steel structure
Machine Power 8.5kw
Working voltage 380V three phase 60hz
Reposition precision 0.02mm
Processing precision 0.1mm
Maximum cutting speed 12000mm/min
Torch Height control mode Automatic
Cutting thickness Max 40mm carbon steel
Plasma power supply LGK200A
Control system STARfire
Motors China high precision stepper motor
Software Starcam
Weight 1800KG
Plasma Air Pressure Max.0.8Mpa
Working Temperature -10°C-60°C. Relative Humidity, 0-95%.
LCD Display Dimension 7 Inches

Product Details

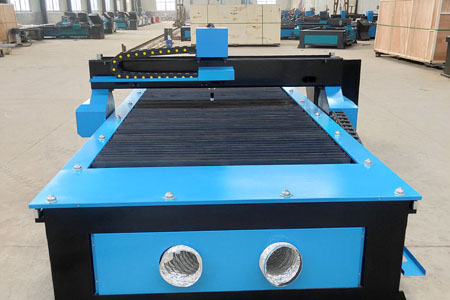

We equipped the two fan for take the cutting smoke out from the room, front fan will blow to back, the back fan will exhaust the smoke out from the machine and out from the room. This way, will efficiency to let the workshop in the good environment. While other factory does not have this fan or only have one.

All our machines have to be checked three times, then allow to send out ,and finally will put one 8GB flash disk into the package, when the customer received the machine, can easy check the video from the 8GB flash disk ,then do the easy operation, in the video nearly like hand by hand do the teaching job, so can let the customer in the shot time to let the machine create the profit. While we also have the video platform, after you purchase the machine, we will give you one password, then you can easy to get the efficiency “after-sell service” from the internet. While other small factory usually, only check one time for the machine, and no 8GB flash disk, and no video platform, then it is hard for you to get the good after-sell service.

The painting: all our machine body have been processed by professional anti-rust treatment. First, we spray 2 times anti-rust paint to ensure that all parts of the machine in a fully protected state, and then spray color. This can effectively prevent the machine rust, resulting in damage to the machine. Other manufacturers do not take anti-rust treatment or only spay 1 time rust paint.

Just because our machine all equipped the professional parts, and test more seriously for the whole machine, so our guarantee period it is 2 years, while other factory it is only 1 years.

We will free provide 2G processing design (USD 320) and Australia professional metal cutting software for you, in the 2G processing design have thousand beautiful graphic, after you get the machine, you can let the machine do a lot of beautiful work, while no need find the engineer to help you to design.

Machine structure is designed by famous mechanical professor, to add many columns for each bean. So that the machine body can bear more weight for large, thick metal sheets without deforming. But some small factories will not add these parts for saving cost, their machine is easy to deform for thick metal.

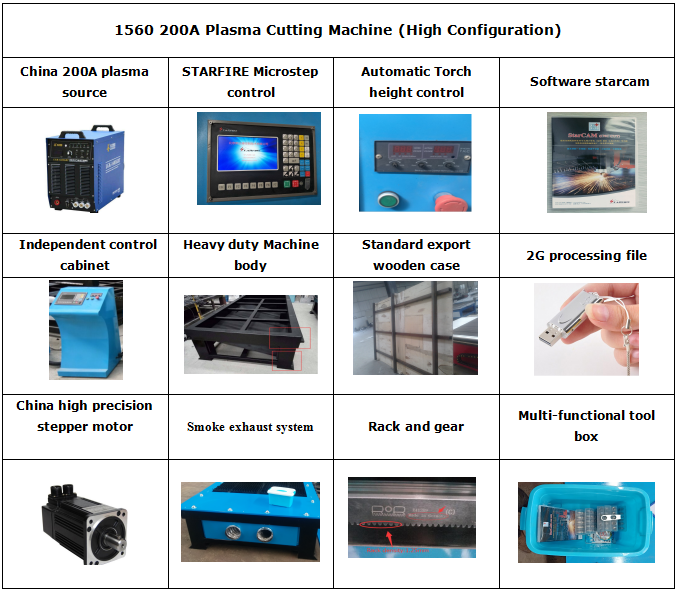

Standard Equipment

Seamless welding machine
Body1500*6000mm working area
China LGK 200A Plasma source
Independent control cabinet
STARfire control system
Automatic Torch height controller
Starcam software
2GB processing file
High precision square guide rail
High precision ball screw
China high precision stepper motor
Multi-function tool box
5 sets of nozzle electrodes
Smoke exhaust system
Easy feeding slide material system
High quality soft electricity cable can be bend for 1.5 million tim
All the necessary parts for machine working
