Portable Handheld Plasma Cutting Machine 1560 120A
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | 1560 120A |
| X,Y working area | 1500*6000mm |
| Z working area | 150mm |
| Machine Power | 8.5kw |
| Working voltage | 380V/50HZ three phase |
| Reposition precision | 0.02mm |
| Processing precision | 0.1mm |
| Maximum cutting speed | 300mm/s |
| Torch Height control mode | Automatic (START THC) |
| Cutting thickness | 25mm |
| Plasma power supply | 120A |
| Control system | SJTU-CNC control system |
| Motors | Stepper motor |
| Software | Starcam |
| Plasma Air Pressure | Max.0.8Mpa |
| Working Temperature | -10°C-60°C. Relative Humidity, 0-95%. |
| LCD Display Dimension | 7.0Inches |
Product Details

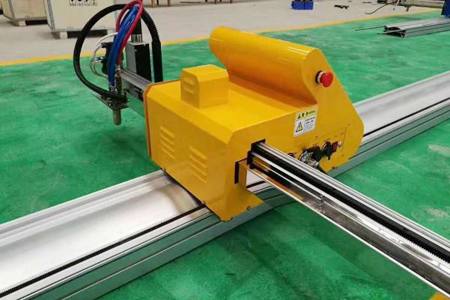

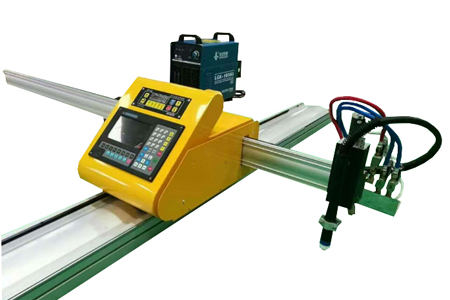

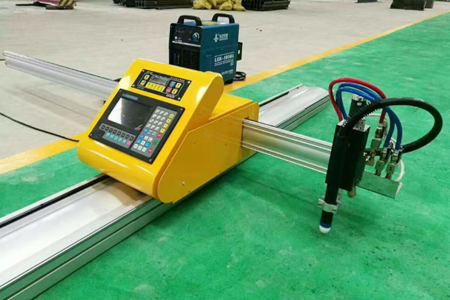

This type of machine is small in size, easy to operate, and convenient to move. It mainly saves freight and costs, and is suitable for frequent address changes.
This machine is usually equipped with two working modes of flame and plasma. One machine is multi-purpose. The flame can cut carbon steel plates within 150mm, and the cutting surface has high verticality.
The control system supports multiple languages, all of which are export standards, such as English, Portuguese, Japanese, Korean, Dutch, Spanish, Russian, French

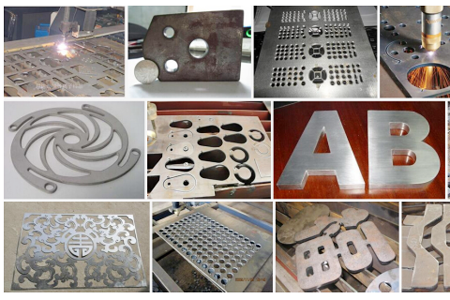

We will free provide 2G processing design (USD 320) , in the 2G processing design have thousand beautiful graphic, after you get the machine, you can let the machine do a lot of beautiful work, while no need find the engineer to help you to design.
Main Parts & Standard Equipment
1500*6000mm work area
China120A LGK Plasma source
Starcam software
SJTU-cnc control system
START THC(torch height control)
2GB ready program
Anti-wear round rail, durable, high precision
Rack and Gear transport system
China high precision stepper motor
Multi-function tool box
Independent control cabinet
Detailed training video
5 sets of nozzle electrode
Flame cutting
All the necessary parts for machine working
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
