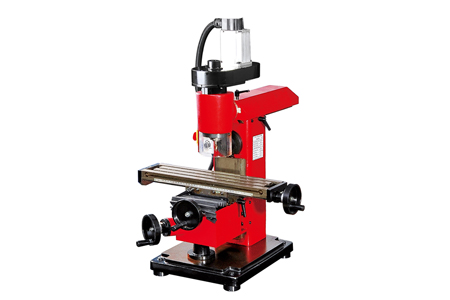

SU1 Universal Milling Machine
End mill capacity : 16 mm
Face mill capacity : 30 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| End mill capacity |
16 mm |
| Face mill capacity |
30 mm |
| Table longitudinal travel(X) |
300 mm |
| Table cross travel(Y) |
90 mm |
| Spindle box travel(Z) |
205 mm |
| Longitudinal milling tilting angle |
45°L, 45°R |
| Spindle taper |
MT3 or R8 |
| Motor output power |
500 W |
| Spindle speed (Variable speed) |
200-2000 rpm |
| Max. sawing cutter diameter |
ø63 |
| Table effective size |
460×120 mm |
| Overall size (LxWxH) |
590x870x800mm |
| Weight (Net/Gross) |
95/115 kg |
| Packing size (LxWxH) |
860x870x810 mm |
Resources & Downloads:
SU1 Universal Milling Machine Product Introduction :
Product Features
• Universal vertical or horizontal milling machine
• Knee type table construction with precision ground surface
• Rigid cast iron construction with dovetailed slideways
• Easy function change makes a versatile machine
• Perfect for slotting, grooving, splines and gear cutting
