Micro Bench Drill & Mill

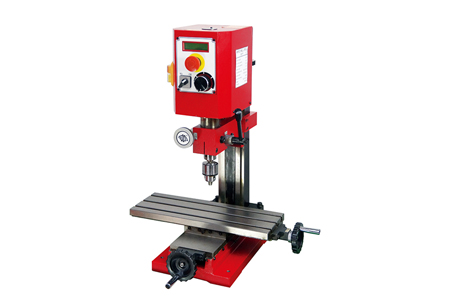

SX1P Micro Mill Drill

Drilling capacity : 10 mm

Headstock travel (Z) : 195 mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Drilling capacity

10 mm

End milling capacity

10 mm

Face milling capacity

16 mm

Longitudinal axis (X)

330 mm

Crpss axis (Y)

145 mm

Headstock travel (Z)

195 mm

Throat

140 mm

Head tilt

Fixed

Max. distance spindle to table

0-265 mm

Spindle taper

MT2 or ER16

Motor output power

250 w

Variable spindle speed-High torque all the way through

100-5000% rpm

Table size

400×145 mm

Table effective size

400×145 mm

T-slot size

8mm

Overal dimension (LxWxH)

515x360x730 mm

Packing size (LxWxH)

480x480x650 mm

Weight (Net/Gross)

48/58 kg


Product Features
• Spindle speed display with blue backlight
• Brushless DC motor
• High speed to 5000 rpm


Youtube Channel : Antishicnc Machine
