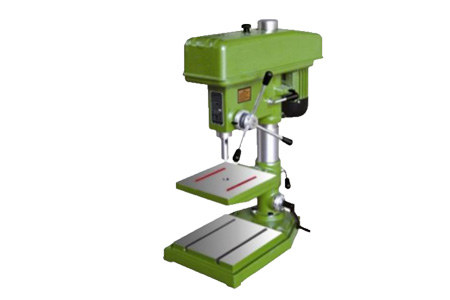

    Indusrial type drilling machine

    Drilling capacity : 12.7 - 25mm

    No installation required

    Simple operation

    Support video teaching

    1 Year for machinery warranty

    On Stock

    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Model Z4120/Z4125 Z4116 Z4112A/Z4116A Z512B/Z516B Z512-2/Z516
    Max.Drilling capacity   (mm)   20/25 16 12.7/16 12.7/16 12.7/16
    Diameter of column (mm) 85 85 70 70 70
    Spindle travel (mm) 125 125 100 100 100
    Distance spindle axis to column generating line (mm) 240 240 193 193 193
    Max. Distance spindle nose totable(mm)    367    297 95 315 332/326
    Max. Distance spindle nose tbase(mm) 630 560 320 556 556/550
    Spindle taper MT2/MT3 MT2 B16/MT2 B16/MT2 B16/B18
    Spindle speeds range(r/min) 365-3150 365-3150 400-4090 480-4100 480-4100
    Spindle speeds series 5 5 5 5 5
    Dimension f worktable surface(mm) 280X300 280X300 250X250 200X230 265X265
    Table travel(mm) 590X375 590X375 495X375  528X360  528X360
    Overall height   (mm) 1127 1127 850 1037 1037
    Motor( w ) 750/1100 750  550/750  370/550  370/550
    G.W/N.W  ( kg ) 165/140 165/140 120/102 108/90 108/90
    Packing dimension（cm） 82X48X102 82X48X102 83X42X92 77X42X94 77X42X94

    Description：
    Both spindle head,worktable ,column and base using high quality cast iron,strong and ever lasting.High precision with excellent feature,widely used at all kinds of fields.
