Micro Bench Drill & Mill

Product Category

Slotting Shaping Machine

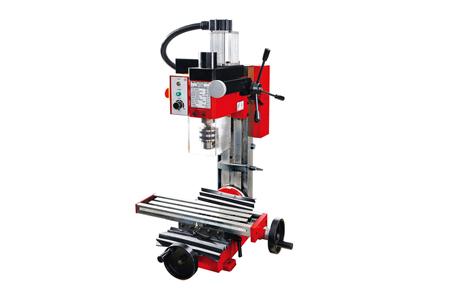

SX2L Mini Mill Drill

Drilling capacity : 16 mm

Headstock travel (Z) : 180 mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Drilling capacity

16 mm

End milling capacity

20 mm

Face milling capacity

35 mm

Longitudinal axis (X)

300 mm

Cross axis (Y)

130 mm

Headstock travel (Z)

180 mm

Throat

167 mm

Head tilt

45°L, 45°R

Spindle taper

MT3 or R8

Spindle speed

100-2500 ±10% rpm

Motor output power(Brushless motor)

500 W

Table effective size

460×120 mm

T-slot size

12 mm

Overal dimenstion (LxWxH)

520x580x760 mm

Packing size (LxWxH)

640x600x730 mm

Weight (Net/Gross)

60/75 kg


Product Features
• Cast iron for vibration free running
• Column tilts to 45° Left & Right
• 500W high torque DC brushless motor
• Coarse down feed for drilling operations
• Hardened slide ways with gib strip adjustment
• Precision ground table with Tee slots for material clamping
• With long size table: 460*120 mm
