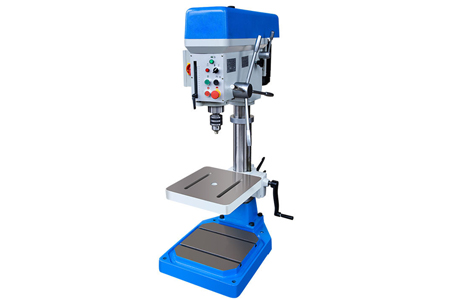

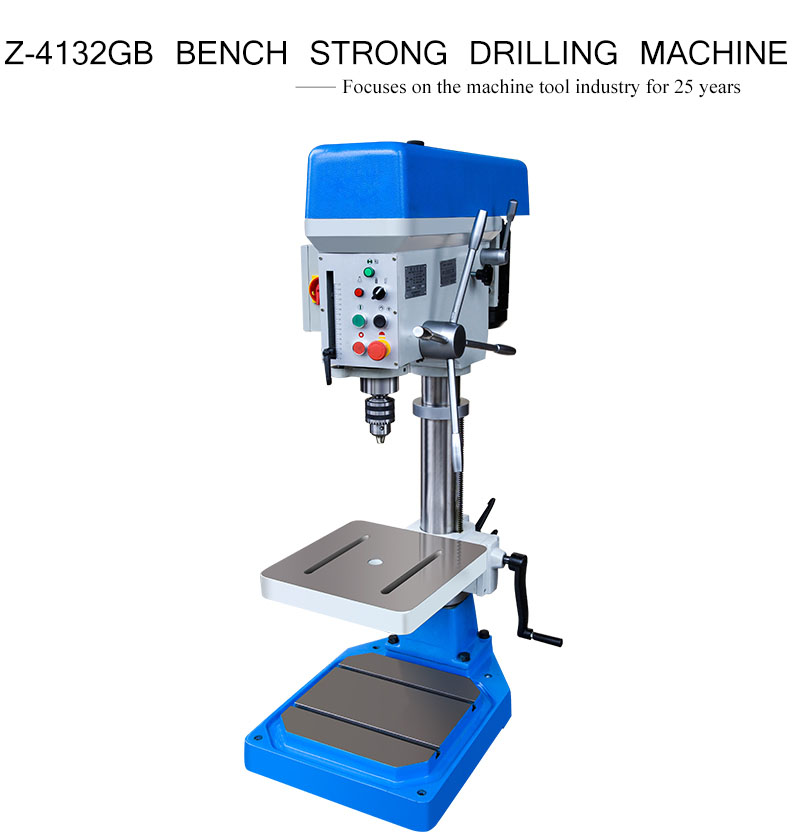

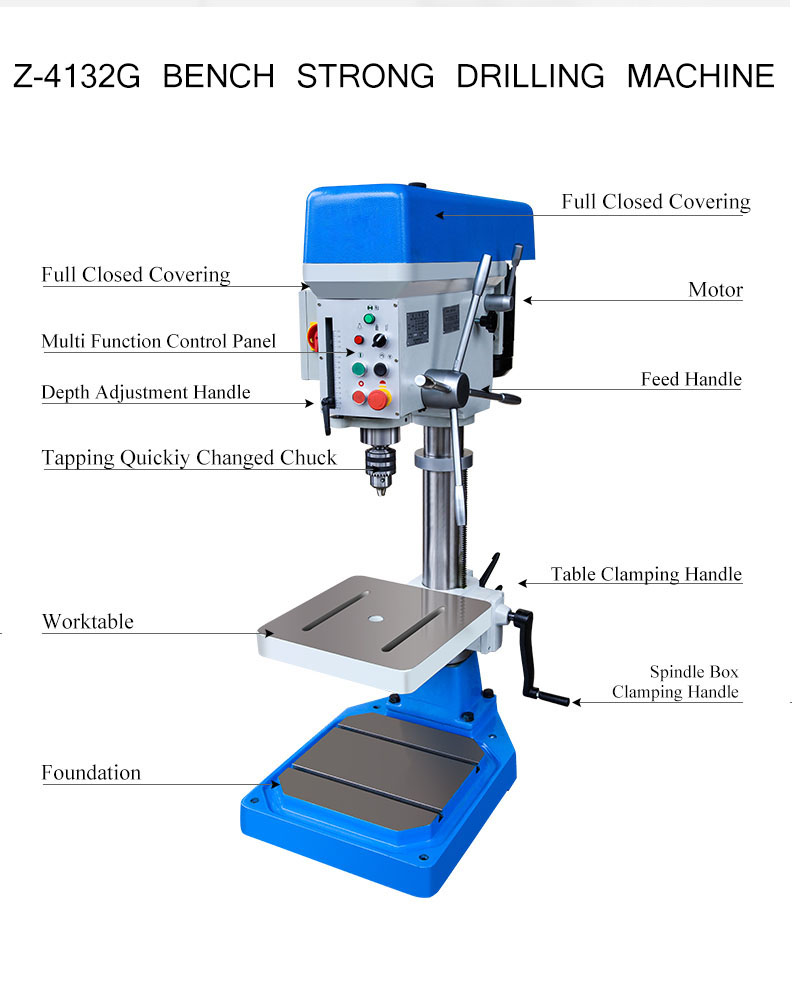

    • Bench strong drilling machine

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

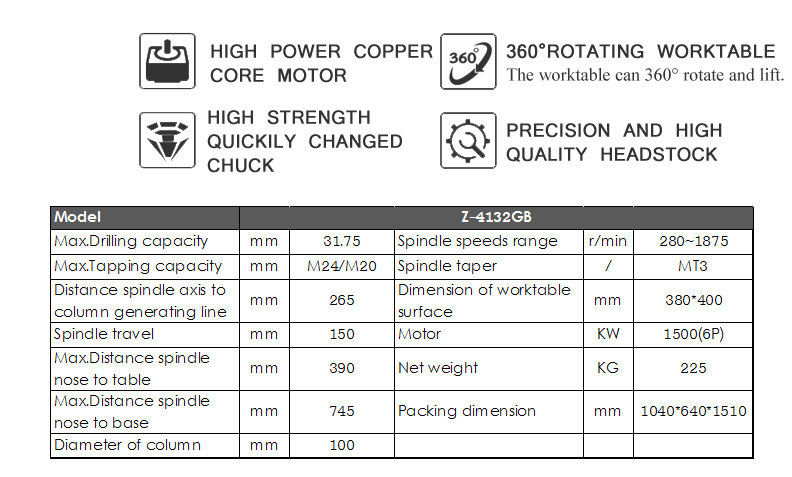

    Technical Parameter :

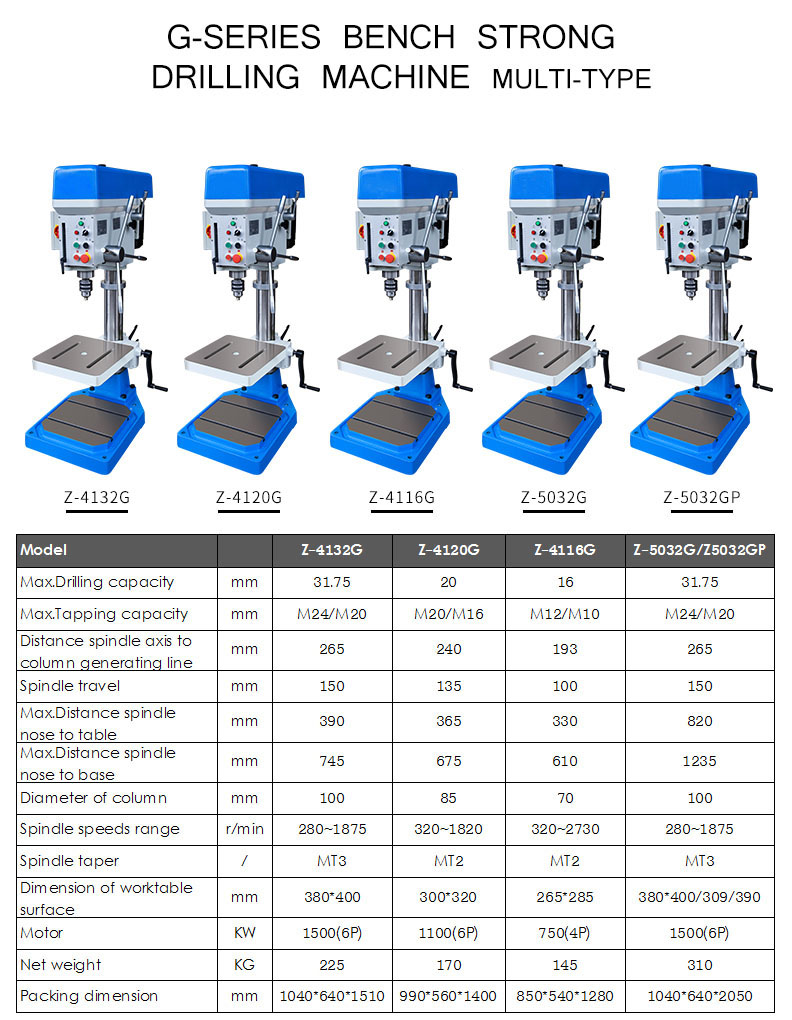

    Model Z4116G/Z4113G Z4120G Z4132G
    Max.Drilling capacity Φ16/Φ13 20 31.75mm
    Max.Tapping capacity M12/M10 M16 M24(cast iron)/M20(steel)
    Diameter of column 70mm 85mm Φ100
    Spindle travel 130mm 135mm 150mm
    Distance spindle axis to column 193mm 260mm 265mm
    Max.Distance spindle nose to table 330mm 366mm 390mm
    Max.Distance spindle nose to base 613mm 678mm 745mm
    Spindle Taper MT2/B16 MT2 MT3
    No. of Speeds 5speeds 5speeds 5speeds
    Spindle speeds range 320~2730r/min 290~2150r/min 280~1875r/min
    Dimension of workable surface 265x285mm 300mm x 320mm 380x400mm
    Dimension of base 360x480mm 376mm x 566mm 645x470mm
    Overall height 1130mm 1245mm 1370mm
    Motor 0.55KW(6P) 1.1kw(6P) 1.5KW(4P)
    Approx.net weight 145kg 179kg 230kg
    Packing size 850x540x1282mm 990x564x1402mm 1039x644x1512mm
