Micro Bench Drill & Mill

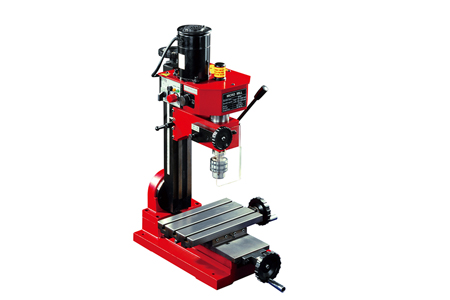

SX1 Mocro Mill Drill

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Drilling capacity

10 mm

End milling capacity

10 mm

Face milling capacity

16 mm

Longitudinal axis (X)

330 mm

Crpss axis (Y)

145 mm

Headstock travel (Z)

195 mm

Throat

140 mm

Head tilt

FixedR

Max. distance spindle to table

0-265 mm

Spindle taper

MT2 or ER16

Motor output power

250 w

Variable spindle speed-High torque all the way through

100-5000% rpm

Table size

400×145 mm

Table effective size

400×145 mm

T-slot size

8mm

Overal dimension (LxWxH)

515x360x730 mm

Packing size (LxWxH)

480x480x650 mm

Weight (Net/Gross)

48/58 kg


Product Features
• Cast iron construction
• Coarse feed for drilling, fine for milling
• Column tilts up to 45° for angled machining
• Two electronically variable control spindle speed ranges
• Two function machine – vertical mill or small pillar drill

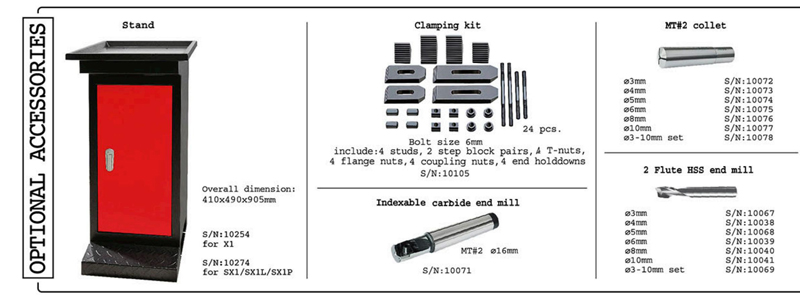

• Supplied with 10mm chuck, drawbar and service tools
