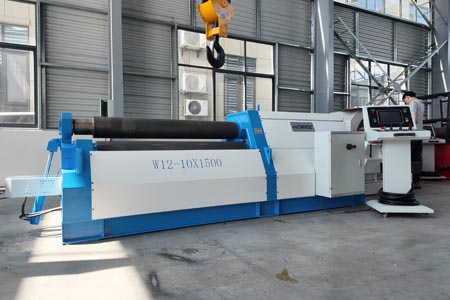

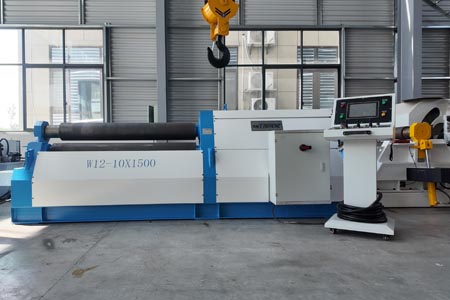

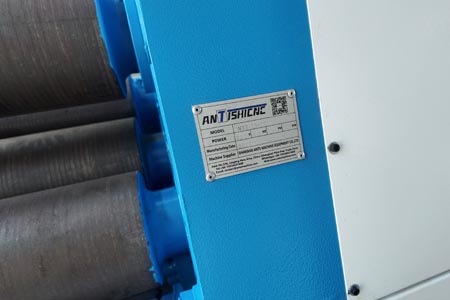

W12-6X1500/W12-10X1500 Four-roller CNC Plate Rolling Machine
Max width : 1500mm
Length of working roller : 1550mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | Unit | W12-6×1500 | W12-10×1500 |
| Max width | mm | 1500 | 1500 |
| The length of working roller | mm | 1550 | 1550 |
| Full loading min. diameter | mm | T6*B1500*Φmin350(σs≤245MPa) | T10*B1500*φmin350（σs≤245Mpa） |
| Pre-bending min. diameter | mm | T4*B1500*Φmin350(σs≤245MPa) | T8*B1500*φmin350（σs≤245MPa） |
| Top roller diameter | mm | Φ170 | Φ210 |
| Lower roller diameter | mm | Φ150 | Φ190 |
| Side roller diameter | mm | Φ130 | Φ170 |
| Rolling speed | m/min | About 4 | About 4 |
| Main motor power | kw | 4 | 5.5 |
| Max working pressure of hydraulic system | MPa | 19.5 | 19.5 |
Resources & Downloads:
W12-6X1500/W12-10X1500 Four-roller CNC Plate Rolling Machine Product Introduction :
W12 four-roll plate rolling machine is designed and produced by our company introducing advanced technology from Germany and Italy. The electrical, hydraulic and other configurations of the equipment are all selected from international or domestic first-line brands. The machine is fully hydraulically driven, digitally controlled, advanced in structure, superior in performance and high in efficiency, and is at the leading level in the same industry both at home and abroad.
Features of four roll plate rolling machine:
- The side roller moves linearly to increase the working stability
- Absolute encoders are used to control the synchronization on both sides of the pressure roller.
The following users are suitable for using the four-roll plate bending machine:
- Users who use the plate rolling machine for the first time, because this is the most easy-to-operate plate rolling machine
- The operator lacks inspection and requires high productivity
- Require high precision and improve quality
- It is hoped that there is only one operator to reduce labor costs
- Due to the large size of the board, the production volume is high or for safety reasons, handling devices, feeding devices, and supporting devices are required

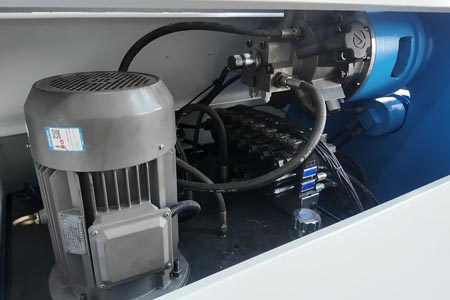

Technical features
1. The unique pre-pressure relief technology is adopted to effectively avoid hydraulic shock and improve the life of pipelines and seals.
2. The hydraulic components are imported high-quality products to ensure the stability of the hydraulic system.
3. Each input and output port of the hydraulic system is equipped with a corresponding detection point, which is convenient for maintenance and fault inspection. The oil pump adopts the bottom type and positive pressure oil suction. At the same time, the filter and liquid level gauge are all equipped with signaling devices, which can automatically alarm and prompt for failure. In addition, the hydraulic station is independent from the machine base, which is convenient for repair and maintenance; it is also far away from the heat source.
4. The production of the system is strictly in accordance with international and industrial standards. The radius of pipe curvature is reasonable and not less than 90°, and the transition is smooth and smooth. The shock-absorbing pipe clamps are reasonably arranged to effectively avoid shock and vibration.
5. The system design fully considers high efficiency and energy saving, reduces power waste, and reduces heat sources.
6. Equipped with high-precision oil suction and oil return filters to ensure the cleanliness of the system oil.
7. Provide common faults and troubleshooting methods of the hydraulic system of the plate rolling machine.
8. In order to ensure the manufacturing quality of the hydraulic system, the system is manufactured according to the hydraulic professional manufacturer and the national GB3766-83 “General Technical Conditions for Hydraulic System”.
9. The oil tank has been shot blasted, pickled and surface cleaned, and the walls are coated with oil-resistant varnish to ensure that the oil tank is clean. There is an air filter at the filling point of the fuel tank to ensure the function of oil filtering and ventilation. In addition, a fine filter must be installed at the end of the oil suction pipe and the oil supply pipeline. The normal operating temperature range of the hydraulic system is 15°C to 65°C. When the temperature is lower than 15°C, it can be automatically heated by an electric heater. When the temperature is higher than 65°C, the temperature of the oil can be controlled by a cooler to make it suitable for the working requirements of the system.
Scope of delivery
A． body
B． Electronic control equipment
C． hydraulic equipment
D． Lubricating equipment
| NAME | Manufacture | ||
| Bearings | Type | Double row aligning bearing
· |
|
| Manufacture | Wafangdian | ||
| Rollers | Material | 42CrMo forging | |
| Manufacture | Nangang/Warwick Steel
· |
||
| Body frame | Material | Q235A | |
| Processing methods | Welded structural parts, annealing stress – shot blasting, CNC boring and milling machine machining
· |
||
| Manufacture | ANTISHICNC | ||
| Hydraulic driver | Jieshite | ||
| Hydraulic motor | Nantong tongde | ||
| Main electrical element | SIEMENS | ||
| Hydraulic system | Pump | Type | Gear pump |
| Manufacture | Changyuan | ||
| Valve | Manufacture | YUKEN | |
| cylinder | Piston rod | 45 Forgings, Heat treatment HRC48-52
· |
|
| Manufacture | Nantong | ||
| Sealing | Yx | ||
| Manufacture | NOK/dingji | ||
| Electric system | digital control system | ||
| Hydraulic motor | Nantong tongde | ||
| Touch screen | Haiwei 15.6’ | ||
| PLC | XINJE | ||
| Sensor | Milante | ||
| Main electrical element | SchneiderElectric/Siemens | ||
