WE67K- 500T/6000 CNC Electro-hydraulic Servo Press Braker Machine
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | WE67K- 500T/ 6000 | |
| Nominal pressure | 5000 KN | |
| Bending length | 6000 mm | |
| Distance between columns | 4500 mm | |
| maximum opening height | 600 mm | |
| Throat Depth | 600 mm | |
| Back gauge X axis | journey | 800 mm |
| maximum operating speed | 400 mm/s | |
| positioning accuracy | ±0.5 mm | |
| Repeatability | ±0.3mm | |
| Back gauge R axis | journey | 120 mm |
| maximum operating speed | 20 mm/s | |
| positioning accuracy | ±0.1 mm | |
| Repeatability | ±0.1mm | |
| Slider Y1 Y2 axis | journey | 400 mm |
| positioning accuracy | ±0.5 mm | |
| Repeatability | ±0.5 mm | |
| Slider running speed | get off | 60mm/s |
| Work | 6 mm/s | |
| return journey | 48 mm/s | |
| Number of CNC axes | 3+1 axes [ Y1 Y2, X, V] | |
| Motor Power | 37 KW | |
| Machine Dimensions | 6500*2550*4500 | |
This machine has high labor productivity and high working precision for bending metal sheets. It adopts upper and lower molds of different shapes, which can be bent into various shapes of workpieces. The sheet metal can be bent and formed once with one stroke of the slider. , After multiple bendings, workpieces with more complex shapes can be obtained. Sheet metal bending machines are widely used in shipbuilding, automobiles, vehicles, hardware, decoration, petroleum, electric power and other industries.
CNC axis description:
Y1 Y2 Axis: Control the movement of the oil cylinders on the left and right sides of the slider respectively V Axis: table mechanical deflection compensation

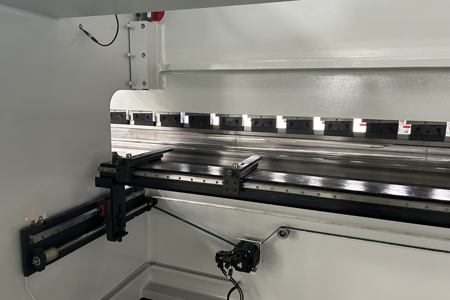

x Axis: Control backgauge movement forward and backward
R Axis: Control the up and down movement of the backgauge ( optional)
| Name | Manufacturer | |

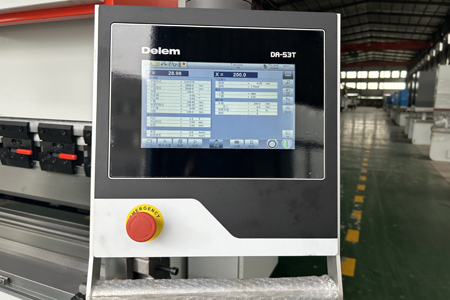

| 1 | Control System | Holland imported DA53T/Germany MT15 |
| 2 | Number of control axes | 3+1 axis or 4+1 axis |
| 3 | Grating ruler | Italian GIVI |
| 4 | Internal gear pump | Heidecker _ |
| 5 | Hydraulic system | German REXROTH |
| 6 | Cylinder seals | Japan NOK |
| 7 | proportional valve | American hengli |
| 8 | pressure block group | German REXROTH |
| 9 | synchronized block group | German REXROTH |
| 10 | Ferrule type pipe joint | Germany JS |
| 11 | main motor | servo motor |
| 12 | servo motor | domestic brand |
| 13 | main electrical components | Schneider |

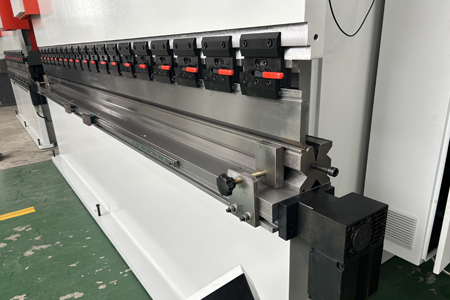

| 14 | mold | each set of upper and lower |
| 15 | cylinder | Nantong Pentium |
| 16 | Ball screw rod | Taiwan HIWIN |
| 17 | Linear Guides | Taiwan HIWIN |
| 18 | Beam Double Linear Guide | Taiwan HIWIN |
| 19 | Quick Fixture | domestic brand |
