Micro Bench Drill & Mill

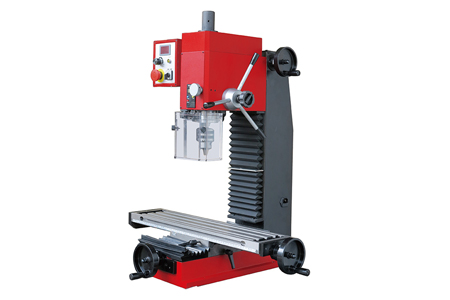

X2.7 Bench Mill Drill

Drilling capacity : 20 mm

Headstock travel (Z) : 290 mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Drilling capacity

20 mm

End mill capacity

16 mm

Face mill capacity

35 mm

Longitudinal axis (X)

395 mm

Cross axis (Y)

180 mm

Headstock travel (Z)

290 mm

Throat

190 mm

Max distance spindle to table

370 mm

Spindle taper

MT3 or R8

Spindle speed

100-2000±10% rpm

Table effective sive

595×140 mm

T-slot size

12 mm

Power

750W

Overall dimension (LxWxH)

725x620x880 mm

Packing size (LxWxH)

840x760x1060 mm

Weight (Net/Gross)

101/135 kg


Product Features

• Variable spindle speed
• Feeding depth and spindle speed
• Fine feeding function
• Long worktable
