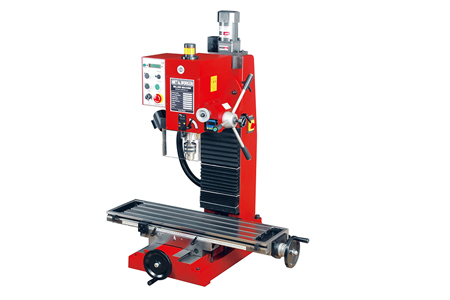

SX4 Bench Mill Drill
Drilling capacity : 30 mm
Max.tapping capacity : 16 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Drilling capacity |
30 mm |
| Max.tapping capacity |
16 mm |
| End mill capacity |
40 mm |
| Face mill capacity |
55 mm |
| Longitudinal axis (X) |
450 mm |
| Crossaxis (Y) |
245 mm |
| Headstock travel (Z) |
335 mm |
| Throat |
290 mm |
| Max distance spindleto table |
430 mm |
| Spindle taper |
MT4 or R8 |
| Spindle speed |
100-1600 ±10% rpm |
| Table effective size |
240×820mm |
| T-slot size |
14mm |
| Head tilt |
45°L, 45°R |
| Motor output power |
1500 W |
| Overal dimension (LxWxH) |
1060x840x1160 mm |
| Packing size (LxWxH) |
1240x980x1300 mm |
| Weight(Net/Gross) |
230/260 kg |
Product Features
• 1,500W brushless DC motor
• Power height adjustment of Z axis
• Tapping function controls on handles
• Tilting headstock with digital angle readout
• Optional Y axis powerfeed and floor stand
• Spindle speed and spindle depth digital readouts
