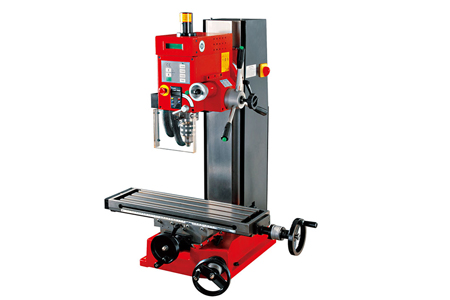

Micro Bench Drill & Mill

SX3 Small Mill Drill

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Drilling capacity

25 mm

Max. tapping capacity

12 mm

End mill capacity

16 mm

Face mill capacity

50 mm

Longitudinal axis (X)

400 mm

Cross axis (Y)

145 mm

Headstock travel (Z)

300 mm

Throat

230 mm

Max distance spindle to table

380 mm

Spindle taper

MT3 or R8

Spindle speed

100-1750 ±10% rpm

Table effective sive

550×160 mm

T-slot size

12 mm

Head tilt

45°L, 45°R

Motor output power

1000 W

Overall dimension (LxWxH)

720x760x990 mm

Packing size (LxWxH)

800x800x1060 mm

Weight (Net/Gross)

165/198 kg


Product Features

• Well made mill/drill for small workshop use
• Digital downfeed and spindle speed indicators
• Dual downfeed controls
• Coarse for drilling, fine for milling
• Cabinet stand, clamp set available as extras
• Head tilts up to 90° for angled and horizontal milling
