Specifications	Units	XK7126	XH7126
Table size	mm	800×260	800×260
X axis travel	mm	450	450
Y axis travel	mm	320	320
Z axis travel	mm	400	400
Max. worktable load	kg	200	200
T slot(number-width-pitch)		3-14×80	3-14×80
Max. spindle speed	rpm	6000	6000
Spindle taper	mm	BT40	BT40
Main motor power	kw	3.7	3.7
X/Y/Z rapid traverse speed	m/min	15/15/15	15/15/15
Cutting feed speed	mm/min	1-6000	1-6000
Guide rail type		Linear rail	Linear rail
Distance from spindle axis to column surface	mm	360	360
Distance between spindle nose and worktable surface	mm	90-520	90-520
Positioning accuracy	mm	±0.015	±0.015
Repeat positioning accuracy	mm	±0.0075	±0.0075
Tool magazine		–	12 Armless/(Optional: Arm 16 )
Max. tool diamete	mm	–	Ø130
Max. tool diameter	kg	–	8
Machine weight	kg	2400	2400
Overall dimension	mm	2200x1900x2200	2200x1900x2200

Product Description:

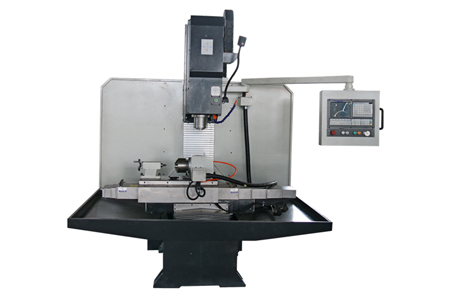

The XK/XH series CNC milling machine suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.

Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.

The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.

The main performance characteristics：

1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting

3.The pre tension precision ball screw drive

4.The high speed, high precision, high rigidity spindle unit

5.The design of oil-water separation

6.The intermittent automatic lubrication

7.Automatic scraping knife system

CNC Milling Machine Configuration Application：

The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.

Standard configuration:

1.The CNC system: KND2000M

2.The knife: The famous Taiwan bamboo hat knife.

3.The unclamping cylinder: Taiwan Shangpin

4.The weight: Wuxi Xieqing nitrogen balance

5.The high quality castings: Resin sand casting

6.The spindle: Taiwan famous high speed spindle

7.The screw: HIWIN

8.The bearing: Japan NTN

9.The Internal protection: half or full protection

Select the configuration:

1.M70B/M70A Mitsubishi FANUC 0i mate MD

2.The CNC dividing head

3.The taiwan famous brand manipulator knife storehouse

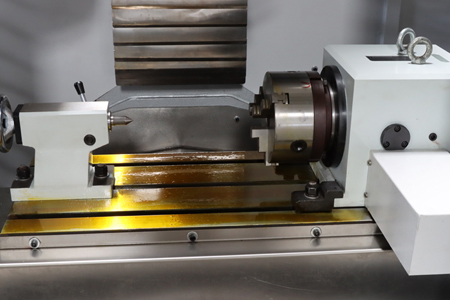

4.NC rotary table

5.The chip cleaner

6.The fourth axis

7.The fifth axis

Youtube Channel : Antishicnc Machine

Get The Required Product Quotation As Quickly As Possible

If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.

CNC Milling Machine

Product Category

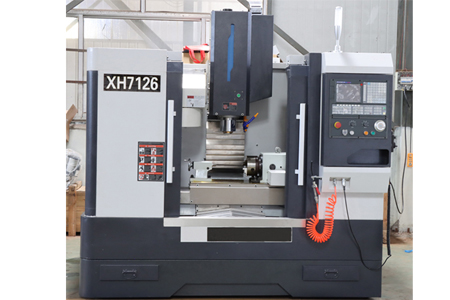

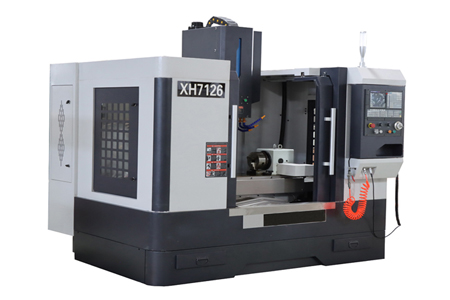

XK7126 XH7126 CNC Milling Machine
