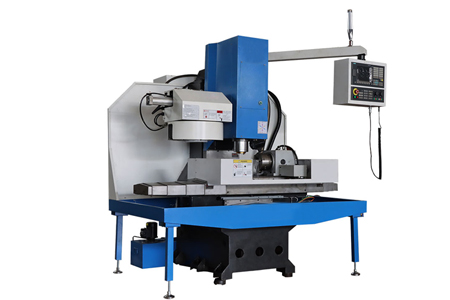

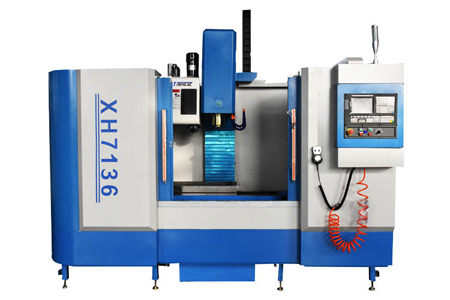

XK7136 XH7136 CNC Milling Machine
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Units | XK7136 | XH7136 |
| Table size | mm | 1250×360 | 1250×360 |
| X axis travel | mm | 900 | 900 |
| Y axis travel | mm | 400 | 400 |
| Z axis travel | mm | 500 | 500 |
| Max. worktable load | kg | 460 | 460 |
| T slot(number-width-pitch) | 3-18×80 | 3-18×80 | |
| Max. spindle speed | rpm | 8000 | 8000 |
| Spindle taper | mm | BT40 | BT40 |
| Main motor power | kw | 5.5 | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 10/10/10 | 10/10/10 |
| Cutting feed speed | mm/min | 1-6000 | 1-6000 |
| Guide rail type | Hard rail | Hard rail | |
| Distance from spindle axis to column surface | mm | 460 | 460 |
| Distance between spindle nose and worktable surface | mm | 100-600 | 100-600 |
| Positioning accuracy | mm | ±0.04 | ±0.04 |
| Repeat positioning accuracy | mm | ±0.02 | ±0.02 |
| Tool magazine | – | 16 Arm-less/(Optional: Arm 16 ) | |
| Max. tool diameter | mm | – | Ø90 |
| Max.tool weight | kg | – | 8 |
| Machine weight | kg | 2600 | 2800 |
| Overall dimension | mm | 2380x1900x2350 | 3000x2400x2500 |
Product Description:
The XK/XH series CNC milling machine suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.
Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.
The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.
The main performance characteristics：
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application：
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
Standard configuration:
The CNC system: KND2000
The unclamping cylinder: Taiwan Shangpin
The weight: Wuxi xieqing nitrogen balance
The high quality castings: Resin sand casting
The spindle: Taiwan famous high speed spindle
The screw: HIWIN
The bearing: Japan NTN
The Internal protection: half protection
Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mf
2.The CNC dividing head
3.The taiwan famous brand manipulator knife storehouse
4.NC rotary table
5.The chip cleaner
6.The fourth axis
7.The fifth axis
