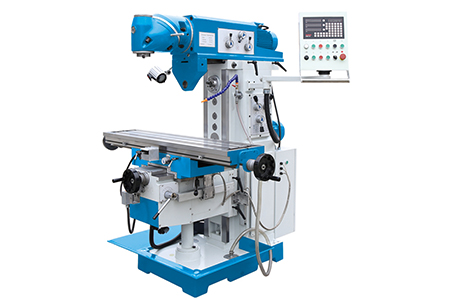

XQ6432 Series Universal Swivel Head Milling Machine
Table size : 1370x320mm
Max. load of table : 300kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Items | XQ6432 | XQ6432A | XQ6432B | XQ6432C |
| Working area | ||||
| Worktable size (L×W) | 1270x320mm | 1370x320mm | 1270x320mm | 1370x320mm |
| T slot (Width x No. x pitch) | 14x3x80mm | |||
| Max. load of table | 300kg | |||
| Table rotation | optional: ±45˚ | |||
| Distance from horizontal spindle axis to table surface | 65-465mm | |||
| Distance from vertical spindle nose to table surface | 250-650mm | |||
| Travels | ||||
| Worktable longitudinal travel (X) | 720mm | 820mm | 900mm | 1000mm |
| Worktable cross travel (Y) | 300mm
（If with DRO:280mm） |
380mm
（If with DRO:360mm） |
||
| Worktable vertical travel (Z) | 400mm | |||
| Ram travel | 460mm | |||
| Spindle | ||||
| Horizontal spindle speed | 12 steps; 35-1500rpm | |||
| Spindle taper(Horizontal) | 7:24, ISO40 | |||
| Motor power(Horizontal) | 3kW | |||
| Universal milling head spindle speed | 11 steps; 45—1660rpm | |||
| Spindle taper(Universal milling head) | 7:24, ISO40 | |||
| Universal milling head swivel angel | ±360° | |||
| Motor power (Universal milling head) | 3kW | |||
| Feed | ||||
| Rapid feed (X/Y/Z) | 1335/1335/1000mm/min | |||
| Feed range (X/Y) | 30-830mm/min | |||
| Feed range (Z) | 23-625mm/min | |||
| Others | ||||
| Machine size (L×W×H) | 1720x1680x1860mm | 1820x1680x1860
mm |
1720x1680x1860
mm |
1820x1680x1860
mm |
| Net weight | 1850kg | 1900kg | 1900kg | 1950kg |
Equipment Introductions
Model: XQ6432 series Universal Swivel head Milling Machine a mature product mainly exported by ANTISHICNC company. The whole machine has a compact structure, beautiful and pleasant appearance. Its suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.
Product Details

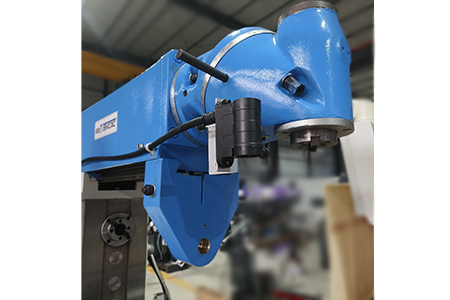

•Universal vertical head can swivel 360°
•Vertical & horizontal two spindles, for flexible operation
•Spindles are driven by gearbox directly, for powerful milling
•Coolant system, lubrication system, chip tray are included
•Work table feed is driven by servo motor, good accuracy, low noise, and easy to operate. One lever can select table feed directions

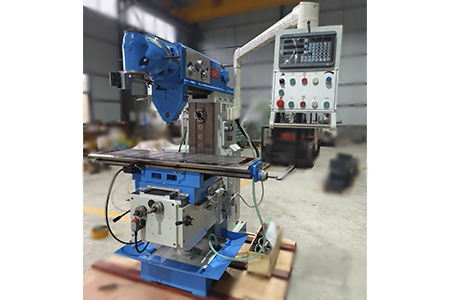

Brief design of control panel, for easy operation (DRO is optional)
±45°(left & right) swivel table is hot sale (optional)
Standard Equipment:
Mill cutter holder ISO40-Ф27
Horizontal arbor assembly ISO40-Ф27
8 pcs milling chuck with collects ISO40
Machine vise 5”
Draw bar
Lifting crank
Working lamp
Coolant system
Tool & tool box
Operator manual
Optional accessories:(need extra cost)
3-axis Digital Read Out
Dividing head 160 mm (MANUAL)
Rotary table 250 mm
Machine vise 6”
58 pcs Clamping kits
New design aluminum hang arm
±45° rotary worktable
Spindle protection cover
Worktable protection cover
LED work lamp

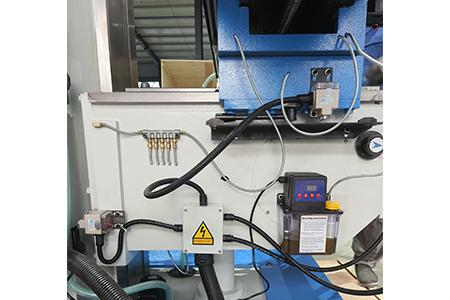

Automatic centralized oil lubrication
Schneider electric components
