YWH21 Series Hydraulic Punching Machine
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Name | Unit | YWH21-100T | YWH21-125T | YWH21-160T | YWH21-200T |
| Nominal Force | KN | 1000 | 1250 | 1600 | 2000 |
| Liquid Max. Working Pressure | mpa | 22.5 | 25 | 25 | 25 |
| Slider Stroke | mm | 180 | 220 | 220 | 220 |
| Slider Work Times | bpm | 10-40 | 10-40 | 10-40 | 10-40 |
| Closed Height | mm | 470 | 520 | 520 | 520 |
| Stroke Adjustment | mm | 180 | 220 | 110 | 110 |
| Throat Depth | mm | 310 | 350 | 350 | 400 |
| Workbench Height from Ground | mm | 770 | 870 | 920 | 920 |
| Fast Speed | mm/s | 210 | 250 | 230 | 230 |
| Working Speed | mm/s | 14 | 16 | 10 | 10 |
| Return Speed | mm/s | 195 | 200 | 170 | 170 |
| Slider Bottom Size | mm | 500*350 | 600*500 | 600*500 | 700*580 |
| Table Size | mm | 850*600 | 1000*650 | 1000*650 | 1300*740 |
| Machine Dimensions | mm | 1350*1630*2500 | 1600×1850×3400 | 1700×2000×3500 | 1800×2100×3600 |
| Motor Power | kw | 7.5/6 | 11/6 | 11 | 22 |
| Oil Pump | m1/r | 40 Variable | 63 Variable | 63 Variable | 80 Variable |

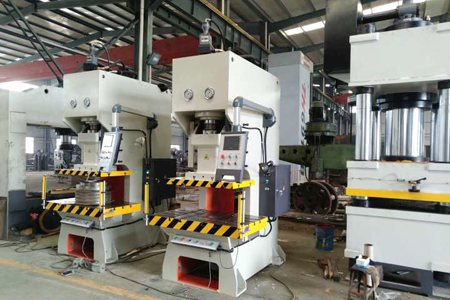

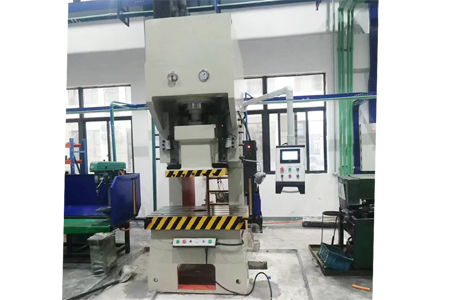

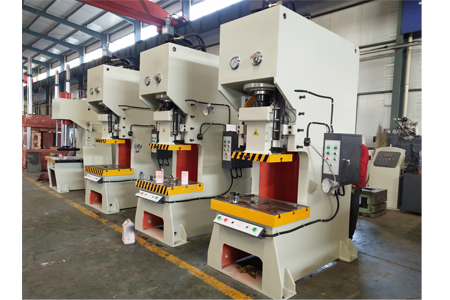

YWH21 series Hydraulic punching machine widely used in stamping and forming in electrical appliances, instruments, vehicles, machinery, agricultural machinery, hardware and other industrial fields. C-shaped open body, convenient for mold loading and processing of larger size materials. Divided into two types of cast body steel body, stable performance, horizontal crankshaft, easy maintenance. Simple structure, good versatility, convenient maintenance and operation.
Features:
1. Punching, bending, flanging of plastic materials, thin plate stretching, fine blanking, cold extrusion of metal parts, and can also be used for correcting and pressing, grinding wheel forming and pressing and forming of plastic products and powder products.
2. Adopting the form of hydraulic transmission, YWH21 series fixed table hydraulic punching machine has the advantages of hydraulic punching machine and mechanical punching machine. It can not only change the size of the pressing force arbitrarily without overloading, but also can meet the delay requirements of various work departments during the pressing process.
3. In order to achieve the purpose of fast idle down and fast return of the slider, the machine tool adopts a speed-increasing oil cylinder, which automatically changes to a slow motion when it comes into contact with the workpiece, reducing the displacement and motor power of the multi-continuation oil pump, and reducing the noise.
4. A photoelectric protection device can be installed in front of the workbench to form a protective barrier in front of the workbench to protect the personal safety of the operator.
5. It is a centralized button, which can realize adjustment, semi-automatic and automatic three operation specifications.
6. With the advantages of novel structure, reliable performance, complete functions and high production efficiency, it is a new replacement product for mechanical punching machines.
7. The price of the press is reasonable, the product production efficiency is high, and the advantages are obvious.
