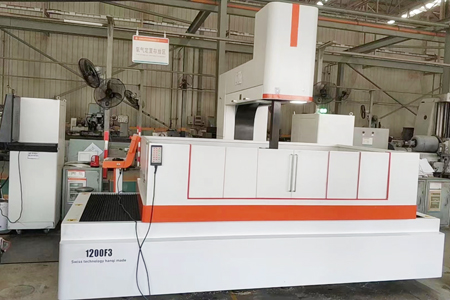

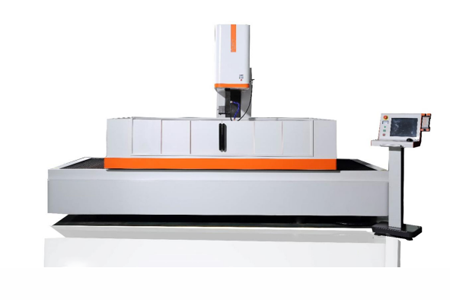

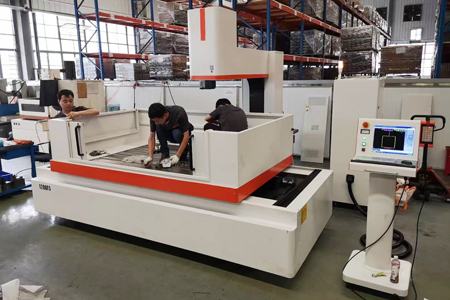

AC Servo Medium-Speed Wire Cutting EDM Machine 1200F3
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Specifications | Unit | 1200F3 | |
Machine | Size (L*W*H) | mm | 3400*4300*2600 |
Total weight | kg | 9000 | |
Worktable | Table size (W*L) | mm | 1490*1200 |
Travel | X-axis travel | mm | 1200 |
Y-axis travel | mm | 1000 | |
Z axis travel | mm | 500 | |
Length* width | mm | 2000*1460 | |
Pulse Width | us | 1-250 | |
Working Fluid tank | Output pulse gap to pulse width ratio | 4—15 | |
CNC
Power Supply |
Number of low pressure pipes | pcs | 0-15 |
Number of high pressure pipes | pcs | 0-3 | |
AC tube number | pcs | 0-3 | |
AC pulse width | gear | 0-7 | |
Servo Speed | gear | 0-15 | |
Servo Tracking | gear | 1-199 | |
Servo speed limit | gear | 1-500 | |
Wire speed | time | 0-3 | |
Cutting times | time | 1-7 | |
Mini mechanical drive equivalent of each axis | um | 1 | |
Cutting thickness | mm | 600 | |
Max. cutting slope/ workpiece thickness | ±12°/80 | ||
Processing Capacity | Max. load capacity of the worktable | kg | 3000 |
Positioning accuracy X/Y | mm | ≤0.015 | |
Repeat positioning accuracy X/Y | mm | ≤0.008 | |
Machining Accuracy | Multi-knife cutting accuracy | mm | ≤0.01 (diameter 18 square height 25mm, cut one and trim two, material SKD11 or Cr12) |
Optimum Surface Roughness | um | Ra≤1.0 (Square 10mm*10mm*25mm cut one and trim three, material SKD11 or Cr12) | |
Max. cutting efficiency | mm2∕min | ≥180 | |
Common cutting efficiency | mm2∕min | ≥120 | |
Processing
Efficiency |
Max. processing current | A | ≥8-12 |
Power consumption | KW | ≤3.5 | |
Wire Diameter | mm | ∮0.12-∮0.2 | |
Wire drum speed | Frequency | ||
Wire Winding System | Tight wire method | Automatic tightening | |
Wire speed | m/s | 3-12 | |
Filtration accuracy | um | <10 | |
Filter Method | Multi-stage filtering method | ||
Work
Tank |
Working Fluid | Special cutting fluid/SPK-808 | |
Environment And Electricity | Electricity | kpa | 380V±10% / 50/60Hz / 2kVA |
Temperature | Temperature 15-30℃ / Humidity 40-80% | ||
Barometric Pressure | 86-106kpa |
Equipment Introductions
Shanghai ANTISHI “F3” series wire cutting machine tool is a five-axis CNC medium-feeding wire-cutting machine tool with large taper, which realizes the five-axis CNC four-axis linkage servo control mode, and is the real high-precision five-axis CNC medium-feeding wire-cutting machine tool in China , It fully adopts the machine tool structure of slow wire walking and the slow wire walking control method, which has extremely high reliability and high processing stability.
Features
Mechanical
1. The casting of wire-feeding level precision castings greatly enhances the stability and reliability of the machine tool for long-term use, especially the accuracy of the machine tool is completely comparable to that of slow wire-feeding.
2. Produce in strict accordance with the Swiss AGIE CHARMILES manufacturing process, manufacturing standards, and inspection standards.
3. Pursue “fine workmanship” in every step, extremely strict.
Drive and Control
1. The original AGIE CHARMILES designed full-imported linear guide rail, the ball screw is directly connected with the AC servo motor, with higher precision and longer retention.
2. X, Y axis AC servo drive control.
3. The U, V, and Z axes all adopt linear guide rails, ball screws and motors are directly connected, which truly realizes high reliability and high precision of taper processing, and at the same time realizes CNC at any point on the Z axis.
4. Five-axis CNC, control accuracy 0.001mm.
Wire transportation
The ed automatic wire tightening device can track the tightness of the molybdenum wire in real time. Solve the possibility of molybdenum wire jumping.
Water tank filtration&Environmental protection processing
1. Multi-stage filter water tank. Fully enclosed sheet metal design, more reliable structure.
2. Long-term processing without water mist splashing, processing is more hygienic and more environmentally friendly.
Machining and testing
1. High-precision imported gantry machining centers, precision grinding machines, and related equipment perform high-precision machining on the fuselage and mechanical parts.
2. The mechanical bed and parts are strictly in accordance with the inspection standards of AGIE CHARMILES in Switzerland, and are inspected by German ZEISS three-coordinate measuring instrument, Japanese MITUTOYO roughness tester, German height detector and other testing equipment.
3. The British RENISHAW laser interferometer detects the whole process accuracy of the machine tool, and realizes pitch and backlash compensation.
In order to better improve the accuracy, stability and consistency of our products, Shanghai ANTISHI has introduced a German ZEISS three-dimensional coordinate measuring instrument for three-dimensional inspection and screening of machine tool castings and purchased parts.
Name | Specifications | Supplier |
Machine bed | Swiss Design Precision Casting | China |
Large taper structure | Patented product | China |
X. Y-axis lead screw | G40*5 C3 | HIWIN/PMI |
X-axis, Y-axis guide rail | HGW45 P | HIWIN/PMI |
X Y axis motor | 1.5KW | PANASONIC |
Guide wheel | Special guide wheel | China |
Ruby guide wire | Patented product | China |
Reversing switch | / | China |
Filtering system | Multi-stage filtering method | ANTISHI |
Power control cabinet | High performance CNC power supply | ANTISHI |
Industrial control computer | Fan-less dual-core CPU (4 threads) | ANTISHI |
AC servo motor | PANASONIC | Japan |
AC Servo Motor Driver | PANASONIC | Japan |
Inverter | SHILIN | Taiwan |
Relay | OMRON | Japan |
Contactor | SCHNEIDER | France |
