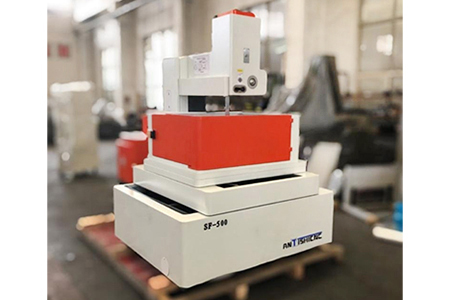

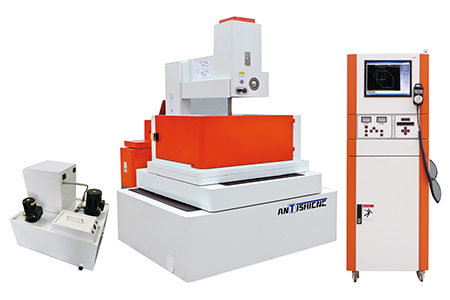

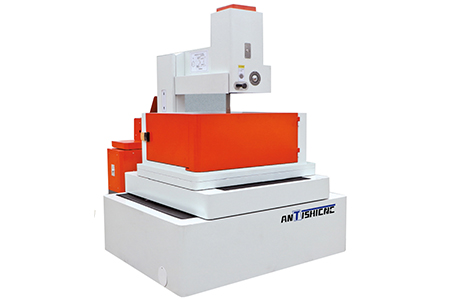

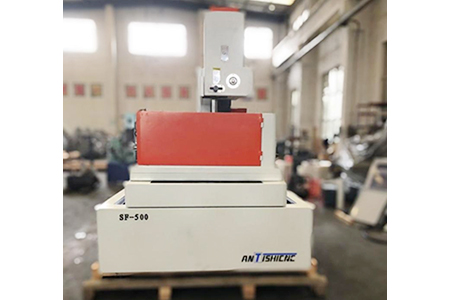

DK77HC Series Luxury Intelligent Medium Speed Wire Cut WEDM Machine
Max.cut thickness Z: 300-350mm
Max.table carry: 300-500kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| DESCRIPTIONS | DK7732HC | DK7740HC | DK7750HC |
| wortable size(L×W) | 370×610mm | 480×720mm | 580×880mm |
| X,Y axis travel(X×Y) | 300×400mm | 400×500mm | 500×600mm |
| Max.cut thickness Z | 300mm | 300mm | 350mm |
| U,V travel | 60×60 mm | ||
| Wire diameter range | Φ0.12-Φ0.18 mm | ||
| Wire feed rate | 7 levels adjustable | ||
| Taper angle/Work-piece thickness | ±3°/60 mm | ||
| Process accuracy(Vertical) | Multi-cut:10×10×30(square)≤0.006 mm
One-cut≤0.012(Multi-cut)(Octagon)≤0.009 mm |
||
| Process roughness | Multi-cut:Ra≤1.2μm
One-cut:Ra≤2.5μm |
||
| Motor drive system | Stepping motor or AC servo motor*(Option) | ||
| Screws&Guides(X,Y) | Precision ball screw/Linear motion guides | ||
| Dielectric coolant Reservoir capacity | Complex or water-dissovle special coolant/65L | ||
| Power supply | AC 3-Φ380V 2KW | ||
| Max.table carry | 300kg | 400kg | 500kg |
| Net wt.of machine Body | 1900kg | 2200kg | 2500kg |
| Machine dimension(mm) | 1800×1250×2120 | 1950×1350×2150 | 2100×1500×2300 |
DK77HC Series Luxury Intelligent Medium Speed Wire Cut WEDM Machine Product Introduction :
The DK77HC Series Luxury Intelligent Model Middle Speed Wire Cutting Machine adding a fifth axis to the X, Y, U and V axes. Realizing work-piece rotary cutting processing.
Equipped with electronic hand-wheel control as standard, which is convenient for users to adjust and operate.
The wire transport adopts frequency converter to adjust the speed of wire travelling infinitely and achieve low noise and smooth operation.
PLC control is adopted for wire transport to realize reciprocating wire transport in deformation range, and the forward and reverse wire travel can be set arbitrarily.
Achieve streak-free cutting and improve the surface quality of processed work-piece.
