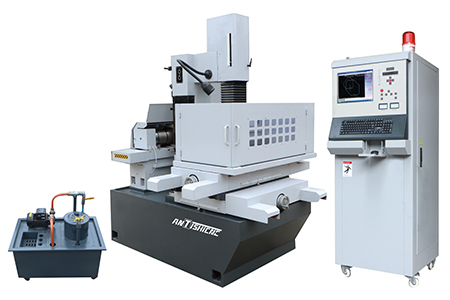

DK77H Series Medium Speed Wire Cutting WEDM Machine
Max.cut thickness: 240-500mm
Max.table carry: 200-1500kg
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Unit | DK7725H | DK7732H | DK7740H | DK7750H | DK7763H | DK7780H |
| Worktable size | mm | 340×560 | 380×650 | 410×710 | 596×880 | 720×1260 | 880×1440 |
| Worktable travel | mm | 250×320 | 320×400 | 400×500 | 500×630 | 630×800 | 800×1000 |
| Max.cut thickness | mm | 240 | 240 | 240 | 340 | 420/320 | 500/400 |
| Taper
(optional) |
°/mm | 6°/80mm | 6°/80mm | 6°-60°/80mm | 6°-60°/80mm | 6°-60°/80mm | 6°-60°/80mm |
| Max.table carry | kg | 200 | 300 | 450 | 800 | 1000 | 1500 |
| Net weight | kg | 1400 | 1600 | 1680 | 2100 | 3500 | 4700 |
| Dimensions | mm | 1500×1100×2140 | 1600×1250×2180 | 1850×1500×2100 | 2100×1800×2400 | 2360×2250×2550 | 2700×2300×2600 |
| Power supply | kw | AC 380V/220V50Hz 2kW | |||||
DK77H Series Medium Speed Wire Cutting WEDM Machine Product Introduction :
Main Features
DK77H Series middle speed wire cutting machines adopting the multiple cutting processing process of slow-feeding wire, intelligent parameter processing.
Adopt high efficiency and high stability high frequency power supply, high processing efficiency ≥ 150mm2/min.
Processing quality close to the level of slow-feeding wire, surface roughness Ra1.5 μm.
HL, HF, AUTOCUT, etc. are available for users to choose.
The fifth axis has been added based on axis X,Y,U and V to realize work-piece rotary cutting as an option.
