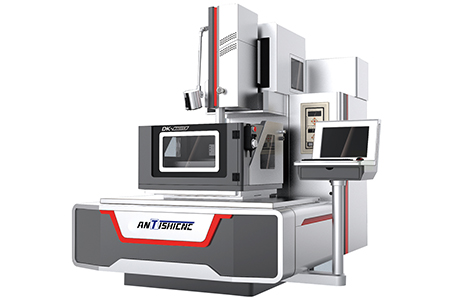

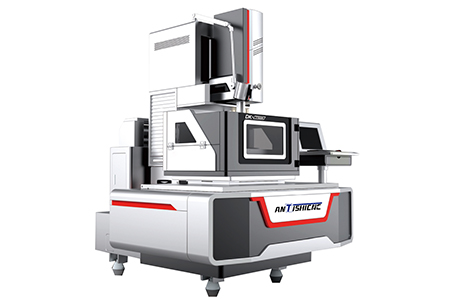

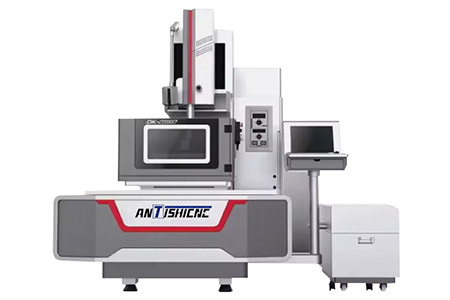

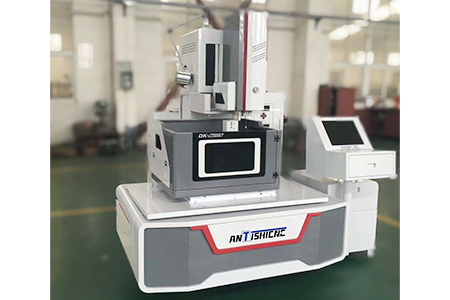

DK77M series High precise CNC WEDM Wire Cutting Machine
Max.cut thickness: 260-360mm
Maximum taper: ±10°/60mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | DK7725M | DK7732M | DK7740M |
| Maximum workiece size | mm | 500×400 | 580×500 | 780×600 |
| Stroke(X/Y) | mm | 320×250 | 400×320 | 550×400 |
| Maximum cutting thickness | mm | 260 | 260 | 360 |
| Maximum taper | ±10°/60mm | |||
| Molybdenum wire diameter | mm | φ0.13-φ0.18 | ||
| Wire speed | m/min | Frequency convertible speed control,maximum speed 600 | ||
| Machine net weight | Kg | 1500 | 1700 | 2200 |
| Machine dimension | mm | 1730x1650x1900 | 1900x1750x1900 | 2200x1860x2200 |
| Maximum workpiece weight | kg | 250 | 350 | 500 |
| Water tank filtration precision | mm | 0.005 | ||
| Water tank volume | L | 110 | ||
| Water tank working method | Differential pressure type filtration system | |||
| Maximum cutting speed | 200 mm2/min | |||
| Best suiface roughness | μm | Ra≦0.8 | ||
| Max.machining current | A | 6 | ||
| Power | KVA | 2 | ||
| Filter fineness | mm | 0.005(pressure differential filtering system) | ||
DK77M series High precise CNC WEDM Wire Cutting Machine Product Introduction :
DK77M middle speed WEDM wire cutthing machine, is the full-closed servo-type CNC wire-cut EDM machine main body adopts a slow-moving wire T-shaped structure, and the workbench is integrated without suspension, which is good for load-bearing and has good processing stability.
Maximum cutting efficiency ≥200mm²/min;
The best surface roughness ≤ Ra0.8μm;
X, Y, U, V, Z five axes are made of Taiwan HIWIN linear guide rail and high precision double nut ball screw;
High precision cutting ≤± 2 μm;
The maximum processing taper is ±10º (60mm thick workpiece).
Continuous cutting 100,000 mm² molybdenum wire loss ≤0.005 mm;
The whole machine adopts bearings imported from Japan;
The whole machine electrical components take use of international level suppliers from Germany;
The control system can make pitch compensation and reverse clearance compensation for X, Y, U, V four axes, and is compatible with the mainstream driving software on the market at present, with the hand wheel pulse control of wire movement to cancel the old stroke switch control, using the encoder direct control, to achieve precise positioning;
The automatic tension structure of slow wire can automatically adjust the tension force with different processing states;
Ultra-low energy consumption, green environmental protection.
Axis Information
| X,Y axis ball screw | Diameter 32 mm screw pitch 4 mm |
| X,Y axis guide | HIWIN guide from Taiwan |
| X,Y axis motor | Servo motor from Taiwan |
| X,Y axis position feedback | Line encoder(high precision)
+0.001 mm precise DRO closed type |
| X,Y axis min. resolution | 0.001 mm |
| U,V axis motor | Servo motor from Taiwan |
| U,V axis min. resolution | 0.001 mm |
| Software pitch compensation | 4 mm |
| X,Y,U,V axis position accuracy | 0.02 mm |
Wire running system
| Wire running motor | AC controlled by VFD |
| Wire speed | 7 switch adjustable |
| Wire Tension Mode | Automatic |
| Wire loading mode | Automatic/ Manual |
| Wire Diameter Available | Φ 0.12~0.18 |
| Tension Control of Wire | Adjustable by system |
