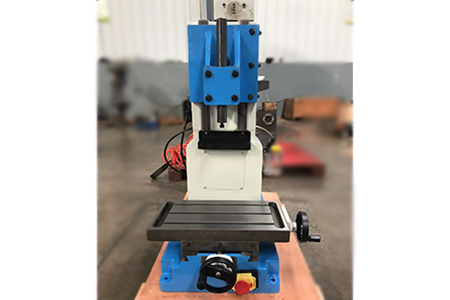

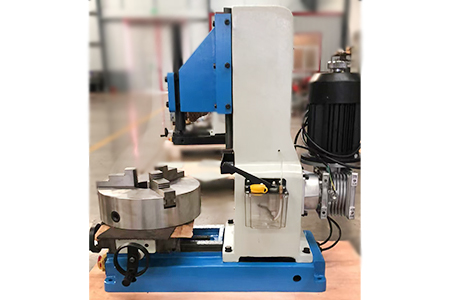

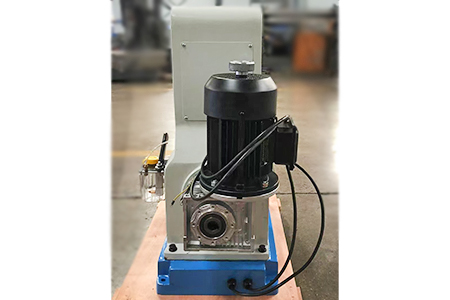

B5012 Slotting machine

Features:
1. Heavy cast iron construction
2. Swivel head tilts left and right 90º
3. 0-125 mm maching stroke range
4. Strokes per minute 60-350 (6 ranges)

The main uses of B5012  slotting machines are as follows:
1. Processing inner keyways or spline holes: slotting machines are mostly used to process inner keyways or spline holes in single-piece or small-batch production.
2. Processing planes, square holes or polygonal holes: slotting machines can also process planes, square holes or polygonal holes, etc.
3. Suitable for processing inner keyways with blind holes or obstructed shoulders: slotting machines are necessary equipment when processing inner keyways with blind holes or obstructed shoulders, because milling machines or broaching machines cannot complete such processing.
4. Suitable for single or small-batch production: slotting machines are suitable for enterprises with single or small-batch production.
5. The worktable has multiple feed directions: the worktable of the slotting machine has three different feed directions (longitudinal, transverse and rotary), so it can process workpieces of various shapes and sizes.
6. Processing molds and other workpieces with a certain range of inclination: slotting machines can also insert molds and other workpieces with an inclination within 10°.
In summary, B5012 and B5013 slotting machines are mainly used for processing various holes and planes in single-piece or small-batch production. Especially when it is necessary to process inner keyways, spline holes or inner keyways with obstruction shoulders, slotting machines play an irreplaceable role.
