Slotting Shaping Machine

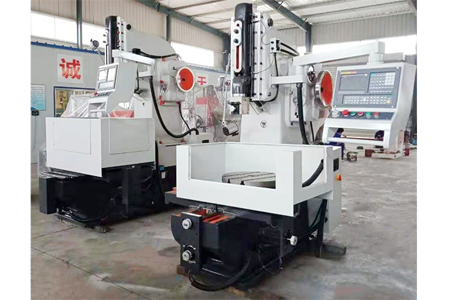

BK5032 Slotting machine

Diameter of worktable : 630mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Main technical specifications Unit BK5032
Maximum stroke of ram Mm 340
Maximum bolt length of ram Mm 320
Number of ram movements Number of reciprocations/min 20.32.50.80
Ram tilt angle degree 0-8
Diameter of worktable Mm 630
Ram vertical adjustment distance Mm 315
Distance from the supporting surface of the cutter head to the front wall of the bed Mm 600
Distance from work surface to lower end of carriage Mm 490/890
Maximum longitudinal movement distance Mm 630
Maximum lateral movement distance Mm 560
Maximum rotation angle degree 360
Vertical and horizontal motor feed range of the worktable (servo control, stepless speed change) Mm/ram every reciprocating time 0.08~1.21
Rotary feed range of worktable (servo control 360 degree stepless speed change) Degree/ram reciprocating once 0.052
~0.783
Motor Power kilowatt 4/5.5
Motor revolutions) (calculated value) Rpm 960
Net weight of machine tool) (approximately) kg 3200/3500
Machine tool outline size (length*width*height) Mm 2461*1695*2345

Product description :

This machine tool is used to process the plane, profile and keyway of various workpieces. It can also be used for processing various punching dies. This machine tool is used in batch production factories, single small batch production factories and use repair shops, and it is also suitable for processing small parts on capital construction sites.

The machining accuracy of this machine tool can reach three levels.
