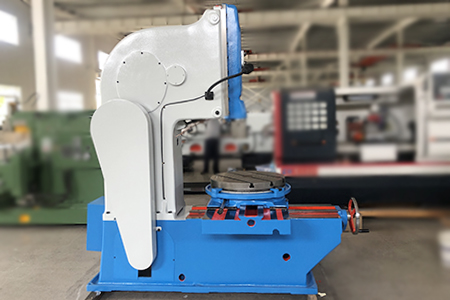

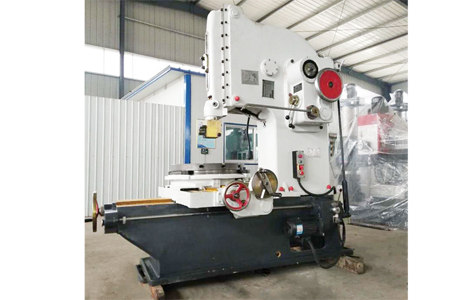

Slotting machine B5032
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | B5032 |
| Maximum stroke of ram | 340mm |
| Maximum slotting length of ram | 320mm |
| Number of ram movements Number of reciprocations/min | 20. 32. 50. 80. |
| Maximum processing size of workpiece (length * width) | 600*320mm |
| Maximum weight of workpiece | 500kg |
| Maximum cutting force | 7500 N |
| Sliding angle of ram | 0~8° |
| Diameter of worktable | 630mm |
| The vertical adjustment distance of the ram | 315mm |
| The distance between the support surface of the cutter head and the front wall of the bed | 600mm |
| The distance from the work surface to the lower end of the carriage | 490mm |
| Maximum longitudinal movement distance (motorized/manual) | 630mm |
| Maximum lateral movement distance (motorized/manual) | 560mm |
| Maximum rotation angle | 360° |
| Vertical and horizontal motor feed range mm/ ram every reciprocating time | 0.08~1.21 |
| The range of table rotation feed rate / ram every reciprocating time | 0.052~0.783 |
| Motor Power | 4KW |
| Motor revolutions (calculated value) | 960 RPM |
| Net weight of machine tool (approximately) | 3200kg |
| Machine tool outline size (length×width×height) | 2261×1495×2245mm |
Product description :
This machine tool is used to process the plane, profile and keyway of various workpieces. It can also be used for processing various punching dies. This machine tool is used in batch production factories, single small batch production factories and use repair shops, and it is also suitable for processing small parts on capital construction sites.
The machining accuracy of this machine tool can reach three levels.
