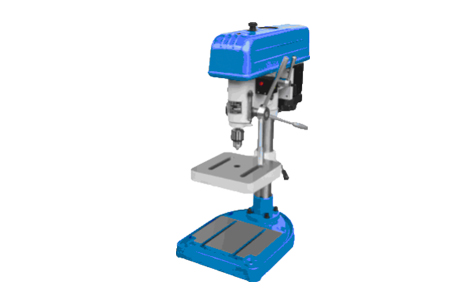

    • Industrial type bench drilling machine

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Model Z512D/Z516D Z4120D/Z4125D Z512-2D/Z516-2D
    Max,tapping capacity 12.7/16mm 20/25mm 12.7/16mm
    Diameter of column 70mm 85mm 70mm
    Spindle travel 100mm 125mm 100mm
    Distance spindle to column 193mm 240mm 193mm
    Max.distance spindle nose to table 315mm 367mm 332/326mm
    Max.distance spindle nose to base 556mm 630mm 556/550mm
    Spindle taper B16/MT2 MT2/MT3 B16/B18
    Spindle speeds range 480~4100r/min 365~3150r/min 480~4100r/min
    Spindle speeds series 5speeds 5speeds 5speeds
    Dimension of table surface 200x230mm 280x300mm 265x265mm
    Dimension of base 528x360mm 590x375mm 528x360mm
    Overall height 1037mm 1127mm 1037mm
    Power of motor 370/550W 750/1100W 370/550W
    G.W/N.W 108/90KG 165/140KG 108/90KG
    Packing dimension 77x42x94cm 82x48x102cm 77x42x94cm

    Description：
    1.Both spindle head,column and base using high quality cast iron,strong and everlasting
    2.High precision with excellent feature,widely use at instrument and camera area
