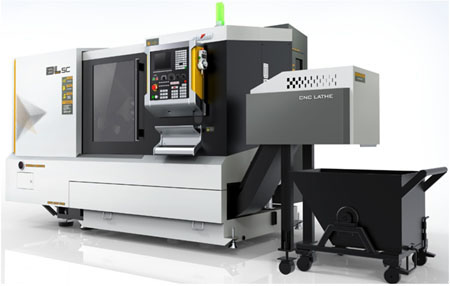

BL Series High Precision CNC Lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Project | unit | BL5 | BL5-C | |
| processing range | Max swing diameter over bed | Mm(in) | Φ500
(20) |
Φ500
(20) |
| The largest rotary diameter on the saddle. | mm(in) | Φ320
(12.598) |
Φ320
(12.598) |
|
| Max turning length | mm(in) | 500
(19.685) |
500
(19.685) |
|
| Max. turning diameter | mm(in) | Φ370
(Φ14.567) |
Φ370
(Φ14.567) |
|
| principal axis | Maximum rod diameter.
(with hollow chuck) |
mm(in) | Φ51
(Φ2) |
Φ51
(Φ2) |
| Hydraulic chuck diameter | mm(in) | Φ210(8) | Φ210(8) | |
| mode of spindle head | A2-6（GB5900.1） | A2-6
（GB5900.1） |
||
| Thru-hole of spindle | mm(in) | Φ62
(Φ2.441) |
Φ62
(Φ2.441) |
|
| maximum speed of spindle | r/min(rpm) | 4500 | 4500 | |
| Main motor rated power.
(continuous /30 minutes) |
kW(hp) | 11/15
(15/20.4) |
11/15
(15/20.4) |
|
| tailstock | Sleeve diameter / stroke | mm(in) | Φ90/100
(Φ3.543/ 3.937) |
Φ90/100
(Φ3.543/ 3.937) |
| Standard/live spindle structure apex taper | MT No. | 5/4 | 5/4 | |
| Sliding base |
angle of inclination |
DEG | 45° | 45° |
migration length X |
mm(in) | 210(8.268) | 210(8.268) | |
migration length Z |
mm(in) | 550(21.654) | 550(21.654) | |
Fast moving speed X/Z |
m/min(ipm) | 20/20
(787/787) |
32/32
(1260/1260) |
|
| knife rest | stations of tool carrier | 8/12 | 8/12 | |
| Tool size (turning/boring) | mm | 25×25/Φ40 | 25×25/Φ40 | |
| accuracy | X/Z Positioning accuracy | mm(in) | 0.008/0.008
(0.0003150/0.0003150) |
0.006/0.006(0.0002362/0.0002362) |
X/Z repeated positioning accuracy |
mm(in) | 0.003/0.004(0.0001811/0.0001575) | 0.003/0.003(0.0001811/0.0001811) | |
| other | power source | kVA | 35 | 35 |
| Volume (length x width x height) | mm(in) | 2860×1830×2020
(112.6×72×79.5 ) |
2860×1830×2020
(112.6×72×79.5 ) |
|
| total weight | kg(lbs) | 4500
(9,923) |
4500
(9,923) |
|
Introduction
BL series highprecision CNC lathe is a high-end series CNC lathe developed by our companywith Temperature Compensation System; Lathe bed, head stock and saddle partsadopt high-grade casts.
Machineperformance characteristics:
1.The mainaccuracy is reduced by 60%-70% of the national standard.
2.Intelligentcompensation function for thermal error;
3.Italian directdrive tool holder, simple structure.
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
