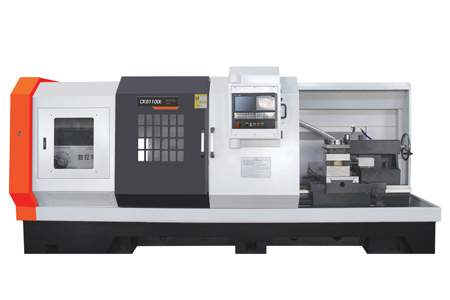

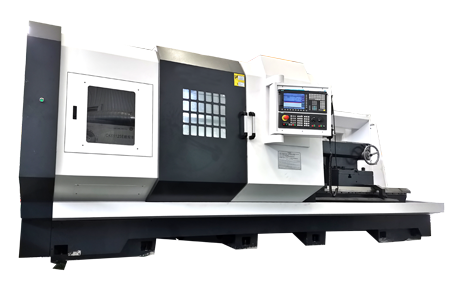

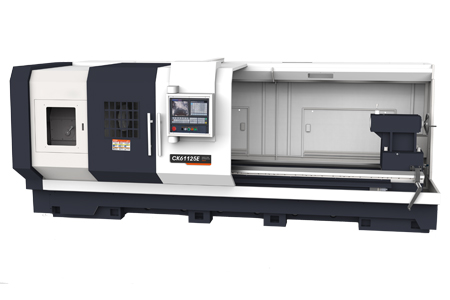

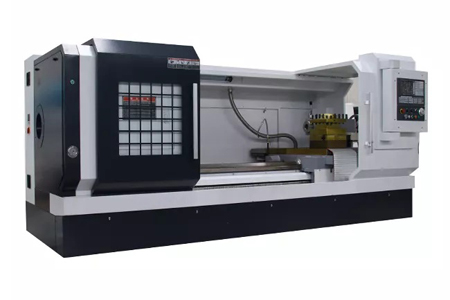

CK61100 CK61125 Multi-functional and Precision Metal CNC Flat-bed Lathe
Max. swing over bed :
1000 - 1250 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Unit | CK61100 | CK61125 |
| Max. swing over bed | mm | 1000 | 1250 |
| Max. swing over slide | mm | 650 | 850 |
| Maximum turning diameter | mm | 1000 | 1250 |
| Max. processing length | mm | 1500/2000/3000/4000/5000 | 1500/2000/3000/4000/5000 |
| Maximum turning length | mm | 1350/1850/2850/3850/4850 | 1350/1850/2850/3850/4850 |
| Form and code of spindle end | A2-15 | A2-15 | |
| Diameter of spindle through hole | mm | 105/130 | 105/130 |
| Spindle speed range | r/min | 10-60,40-240,100-600 | 10-50,40-120,100-300 |
| Spindle shift mode | 3 speed mechanical speed regulation | 3 speed mechanical speed regulation | |
| Motor power of spindle | kw | 15 | 22 |
| Chuck size | Inch | 18 | 24 |
| X axis rapid traverse | m/min | 4 | 4 |
| Z axis rapid traverse | m/min | 5 | 5 |
| X axis servo motor torque | N.m | 10 | 15 |
| Z axis servo motor torque | N.m | 15/22/30 | 18/22/30 |
| X axis travel | mm | 530 | 650 |
| Z axis travel | 1500/2000/3000/4000/5000 | 1500/2000/3000/4000/5000 | |
| Capacity of tool holder | 2004-6-8 | 2004-6-8 | |
| Maximum tool cross section | mm | 40×40 | 40×40 |
| Tail stock quill dia | mm | 140 | 160 |
| Tail stock quill travel | mm | 250 | 250 |
| Tail stock quill taper | MT6# | MT6# | |
| Total rated power | kw | 22/23/25 | 29/30/30 |
| Total rated current | A | 47/50/54 | 62/65/65 |
| Net weight | kg | 4800/5500/6300/7200/8000 | 8200/9000/10600/12000 |
| Machine dimension(L*W*H) | mm | 4100/4600/5600*2160*2200 | 4100/4600/5600×2355×2425 |
Product description
CNC lathe is one of the widely used CNC machine tools. CK Series machine can undertake a variety of turning work-piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whit worth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals. It is widely used in wind power, petroleum, chemical,paper making, textile, mining, and so on. It is widely used in wind power, oil, chemical industry, paper making, textile, mining,
Ship, aviation, rubber, mold, auto parts, processing such as steam turbine rotor, belt, generator, turbine rotor, machine spindle, hoist, and so on machinery manufacturing industry.
Features
1.High hardness, good rigidity, high audio quenching, machine guide rails and saddle rails are using special materials, hard rail, high frequency quenching, super hard wear and tear, durable, good processing accuracy to maintain good.
2.High stability, high-strength cast iron machine, adding copper and chromium special materials, bed rail quenching depth of 4 mm hardness of 52 °or more, effectively improve the machine wear resistance and stability.
3.Centralized automatic lubrication guide, screw, etc., with a flexible movement to reduce the heat distortion, precision and stability characteristics.
4.Low machine noise, the machine gear with precision grinding, effectively improve the gear hardness, reducing machine noise.

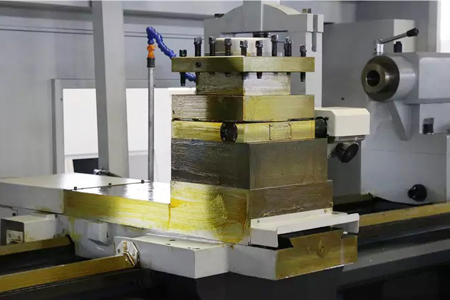

5.Tool holder with high positioning accuracy, high precision CNC turret, tool change knife, no contact to send the message, against the sales, the use of international advanced three-pole tooth fine positioning, thread lifting tightening. Optional six-station or eight-station horizontal electric knife, turret with high positioning accuracy, high strength, good seismic performance and so on.
Standard Equipment:
1.System: CNC System, Servo motor and drive.
2. Manual 3-jaw chuck.
3. 4-station electric tool post.
4. Manual tail stock
5. Cooling system.
6. Automatic lubrication system.
Optional Equipment:
1. CNC system: SIEMENS, FANUC, KND.
2. Hydraulic chuck/Pneumatic chuck.
3. Hydraulic tail-stock/Pneumatic tail-stock.
4. Horizontal 6-station turret/8-station turret.
5. Auto bar feeder
6. Chip conveyor
