Flat-bed CNC Lathe

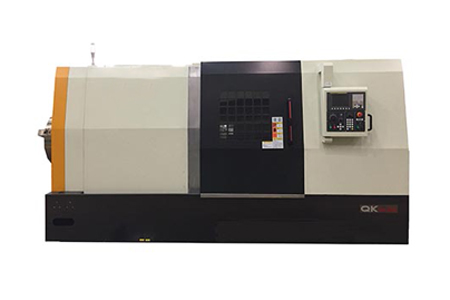

QK1217/QK1235 CNC Pipe Threading Lathe

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Item Unit QK1227 QK1235
Capacity Max swing over bed mm(in) φ800(31.496) φ880(34.646)
Max swing over slide mm(in) φ540(21.256) φ540(21.256)
Max machining length mm(in) 750(29.528) 750(29.528)
Max.hoop dia. mm(in) φ508(20) φ508(20)
Max pipe dia. mm(in) φ270(10.630) φ340(13.386)
Spindle Hydraulic chuck dia. mm(in) φ630(24.803) φ800(31.496)
Spindle center height mm(in) 1290(50.784) 1290(50.784)
Spindle thru-hole mm(in) φ285(11.220) φ355(13.976)
Bearing dia. r/min(rpm) 40–400 30–320
Spindle speed kW(hp) 37(50.32) 45(61.2)
Carriage Slant angle DEG 60° 60°
X/Z-axis travel mm(in) 380/800(14.961/31.496) 380/800(14.961/31.496)
X/Z-axis rapid traverse m/min(ipm) 8/12(314.961/472.441) 8/12(314.961/472.441)
X/Z-axis servo motor torque Nm(ft-lb) 20/20(14.749/14.749) 20/20(14.749/14.749)
Turret Number of tool stations 2/4 2/4
Tool section(turning/boring) mm(in) 32×32/φ80(1.26×1.26/φ3.15) 32×32/φ80(1.26×1.26/φ3.15)
Others Power source kVA 70 70
Dimension(L×W×H) mm(in) 4660x2520x2430(183.465 x 99.213 x95.67) 4660x2520x2430 (183.465 x 99.213 x95.67)
Gross weight kg(ibs) 13000(28665) 14000(30870)


Withdouble chucks for front and back clamping for long pipe workpieces, with gangtool post. The machine is a CNC lathe specially used for oil pipe threading tocut the threads.
