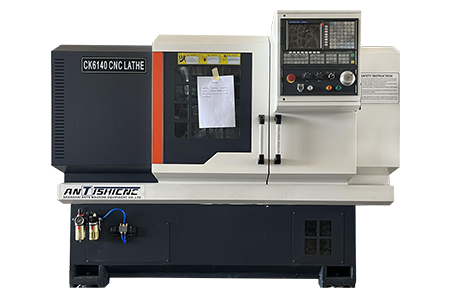

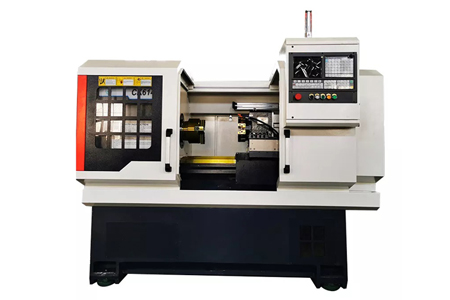

CK6140 CNC Lathe ANTISHICNC Brand Small Size Flate-bed Turning Machine
Swing over bed : 300-530 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Name | Unit | Specifications | ||||
CK6140/550 | CK6140/750 | CK6140/1000 | ||||
Max. Swing over Bed | mm | Φ400 | ||||
X-direction rail span | mm | 180 | ||||
Z-direction rail span | mm | 300 | 400 | |||
Max. Swing over slide | mm | Φ240 | Φ180 | |||
Top distance | mm | 550 | 750 | 1000 | ||
Max. disc machining diameter | 400 | |||||
Max. Turning length | 420/300(6/8
Station) |
600/500(6/8
Station) |
830 (4stations)/700 (6/8 stations) | |||
Center High | From the bed | mm | 230 | 220 | ||
From the ground | mm | 1020 | ||||
Spindle through hole diameter | mm | Φ65/Φ82(optional) | Φ65 | |||
Bar diameter | mm | Φ63 | ||||
Optional hollow chuck tie rod through hole | mm | Φ50 | ||||
Spindle end type | A2-6/A2-8 | |||||
chuck | mm | Ordinary Φ200 (65 holes)/Φ250 (82 holes) | ||||
Spindle taper taper | No | metric 70 | ||||
Optional 8-inch hollow chuck draw tube inner diameter | mm | Φ50 | ||||
Spindle limit speed | rpm | 2000(65hole)/1600(82Hole) | ||||
Tail stock sleeve diameter | mm | Φ60 | ||||
Tail stock sleeve inner hole taper | No | MT4# | ||||
Tail stock sleeve stroke | mm | 120 | ||||
Tail stock form | Ordinary hand crank (optional hydraulic tailstock) | |||||
Number of electric tool holders | Pcs | 4 (optional 6/8 station electric) | ||||
Knife square size | mm | 20×20(four stations) | ||||
Screw model | X Axis | mm | FDC2506-P3 | FDC2506-P3 | FDC2506-P3 | |
Z Axis | mm | FDC3210-P3 | FDC3210-P3 | FDC4008-P3 | ||
X/Z rapid traverse speed | m/min | 6/8 | 6/8 | 6/8 | ||
X travel | mm | 220 | 220 | 220 | ||
Z travel | mm | 550 | 750 | 950 | ||
Minimum setting unit | mm | 0.001 | 0.001 | 0.001 | ||
main motor power | KW | 5.5 (Optional 7.5kw) | 5.5 (Optional 7.5kw) | 5.5 (Optional 7.5kw) | ||
total power | KW | 11(13) | 11(13) | 11(13) | ||
Machine net weight | Kg | 1900 | 2200 | 2300 | ||
Dimensions (L×W×H) | mm | 2200×1500×1750 | 2200×1500×1750 | 2500×1600×1700 |
Product description
CK Series machine tools is a mature product has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.This series machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Features
1.Optimized design of the head-stock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
2.Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.
3.Adopts domestic famous and high-quality ball screw and high-precision screw bearing.
4.The spindle adopts high-precision spindle bearing set and has been precisely assembled and dynamically balanced to ensure that the spindle has high precision, low noise and strong rigidity.
5.Each lubrication point adopts a forced automatic lubrication device for fixed-point and
quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the amount of oil is insufficient, a warning signal is automatically generated.
6.The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of the iron filings.
Standard Equipment:
1.System: CNC System, Servo motor and drive.
2. Manual 3-jaw chuck.
3. 4-station electric tool post.
4. Manual tail stock
5. Cooling system.
6. Automatic lubrication system.
Optional Equipment:
1. CNC system: SIEMENS, FANUC, KND.
2. Hydraulic chuck/Pneumatic chuck.
3. Hydraulic tail stock/Pneumatic tail stock.
4. Horizontal 6-station turret/8-station turret.
5. Auto bar feeder
6. Chip conveyor
