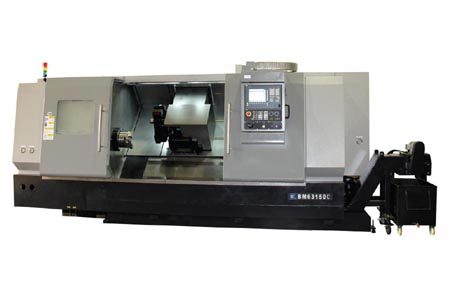

BM63150C precision CNC turning machine
For accurate machining of precision workpiecesin car and aerospace industries
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Item | Unit | BM63150C | |
Capacity | Max swing over bed | mm(in) | Φ800(31.496) |
Max swing dia.over slide | mm(in) | Φ600(23.622) | |
Max turning diameter | mm(in) | Φ630(24.803) | |
Max turning length | mm(in) | 1500(60) | |
Spindle | Hydraulic chuck diameter | mm(in) | Φ250(10) |
Spindle nose | A2-8(GB/T5900.1) | ||
Spindle thru-hole | mm(in) | Φ105(4.133) | |
Spindle bearings(front/rear) | mm(in) | Φ160/Φ140(6.299/5.512) | |
Spindle speed | r/min(rpm) | 50-3000 | |
Main motor power (cont/30min) | kW(hp) | 67.4/80(91.66/108.8) | |
Max output torque of spindle | N•m(ft-lb) | 795(586.281) | |
Carriage | Slant angle | DEG | 45° |
X/Z-axis travel | mm(in) | 385/1500(15.157/60) | |
X/Z-axis rapid traverse | m/min(ipm) | 24/24 | |
X/Z-axis servo motor torque | N•m(ft-lb) | 37/37(27.286) | |
X/Z-axis ball screw diameter | mm | Φ40/Φ50(1.574/1.968) | |
Turret | Number of stations | 12 | |
Tool section(turning/boring) | mm(in) | 32×32/Φ50(1.26/1.9) | |
Tailstock | Quill dia/travel | mm(in) | φ130/150(5.118/5.906〞) |
Taper of center | MT No. | 6 | |
Accuracy | Run-out of spindle | mm(in) | 0.0005(0.0000196) |
Periodical axial slip of spindle | mm(in) | 0.001(0.0000393) | |
X/Z-axis repeatability | mm(in) | 0.003/0.003(0.000118) | |
Others | Power source | kVA | 100 |
Dimension(L×W×H) (without chip conveyer) | mm(in) | 5260×2607×2335
(207×102.6×91.9) |
|
Dimension(L×W×H) (with chip conveyer) | mm(in) | 5967×2607×2335
(234.9×102.6×91.9) |
|
Dynamic/static spindle hydraulic station and oil cooler,water cooler(L×W×H) | mm(in) | 4500×1500×2000
(177.1x60x80.) |
|
Gross weight(net weight) (incl:Dynamic/static spindle hydraulic station and oil cooler,water cooler | kg
(lbs) |
13500(29761 lb)
15000 (33068 lb) |
Introduction
BM63150C precision CNC turning machine is 2010- year subjectunder Major Science and Technology Program for High-grade CNC Machines andBasic Manufacturing Equipment (subject No. 2010ZX04001-051).
It is equipped with integral slant bed made of granite,linear rolling ways, large-scale precision and dynamic/static pressure spindlewhich is directly driven, precision ball screw, reliability index MTBF≥900.
It is suitable for accurate machining of precision workpiecesin car and aerospace industries.
