Technical Parameter :
|Swing over bed||mm||500||500||600|
|Swing over cross slide||mm||280||280||395|
|Work piece Length||mm||850/1350/1850/2850||850/1350/1850/2850||850/1350/1850|
|X Max. axis travel||mm||250||250||250|
|Z Max. axis travel||mm||1000/1500/2000/3000||1000/1500/2000/3000||1000/1500/2000/3000|
|Turret/tool of spindle||mm||82||82||82|
|Tail stock sleeve travel||mm||140||140||140|
|Tail stock sleeve Dia.||mm||65||75||75|
|X/Z Rapid traverse||m/min||6/8||6/8||6/8|
|Cutting tool size||mm||25*25||25*25||25*25|

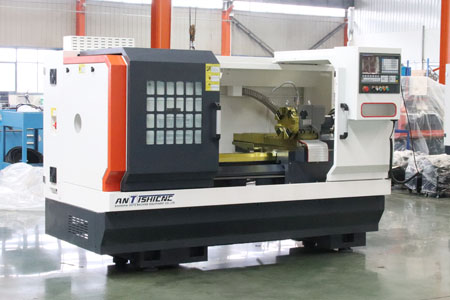

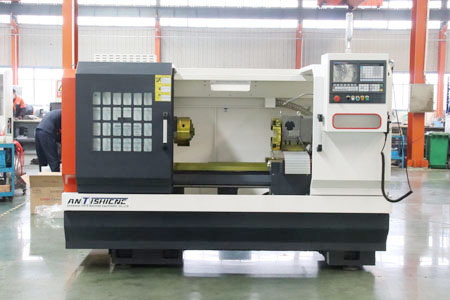

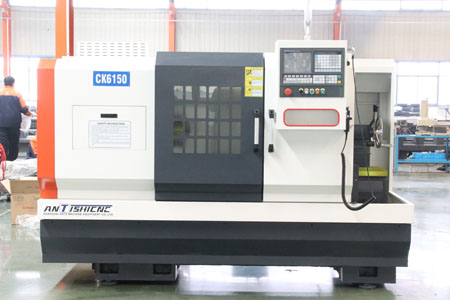

CK Series machine tools is a mature product has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.This series machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
1.Optimized design of the head-stock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
2.Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.
3.Adopts domestic famous and high-quality ball screw and high-precision screw bearing.
4.The spindle adopts high-precision spindle bearing set and has been precisely assembled and dynamically balanced to ensure that the spindle has high precision, low noise and strong rigidity.
5.Each lubrication point adopts a forced automatic lubrication device for fixed-point and
quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the amount of oil is insufficient, a warning signal is automatically generated.
6.The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of the iron filings.
Manual 3-jaw chuck.
4-station electric tool post.
Manual tail stock
Automatic lubrication system.
1. CNC system: SIEMENS, FANUC
2. Hydraulic chuck/Pneumatic chuck.
3. Hydraulic tail stock/Pneumatic tail-stock.

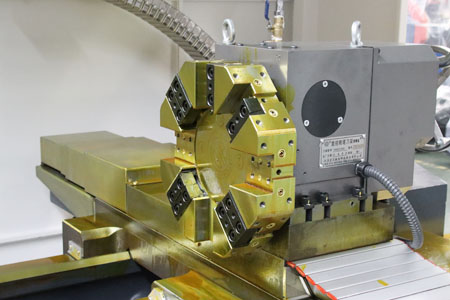

4. Horizontal 6-station turret/8-station turret.
5. Auto bar feeder
6. Chip conveyor
