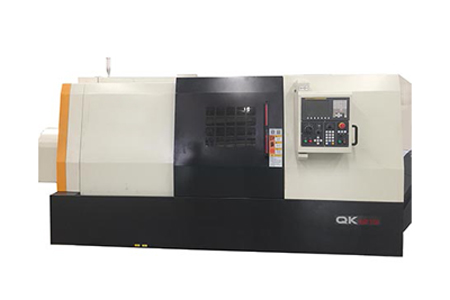

QK1212/QK1219 CNC pipe threading lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | Unit | QK1212 | QK1219 | |
| Capacity | Max.swing dia.over bed | mm(in) | φ500（φ19.685） | φ600 （φ23.622） |
| Max.swing dia.over slide | mm(in) | φ280（φ11.024） | φ280 （φ11.024） | |
| Max.turning length | mm(in) | 600（23.622） | 600（23.622） | |
| Max.hoop dia. | mm(in) | φ340（φ13.386） | φ340 （φ13.386） | |
| Max.pipe dia. | mm(in) | φ120（φ4.724） | φ190（φ7.480） | |
| Spindle | Chuck/Hyd.chuck dia. | mm(in) | φ380（φ15） | φ500（φ19.685） |
| Spindle center height | mm(in) | 1120（44.094） | 1120（44.094） | |
| Spindle thru-hole dia. | mm(in) | φ130（φ5.118） | φ196（φ7.717） | |
| Bearing dia. | r/min(rpm) | 150–1000 | 150–800 | |
| Spindle speed | kw(hp) | 15（20.40) | 22（29.92） | |
| Carriage | Slant angle | DEG | 60° | 60° |
| X/Z-axis travel distance | mm(in) | 340/650（13.386/25.590） | 340/650（13.386/25.590） | |
| X/Z-axis rapid traverse | m/min(ipm) | 8/12（315/472） | 8/12（315/472） | |
| X/Z-axis servo motor torque | Nm(ft-lb) | 20/20（14.75/14.75） | 20/20（14.75/14.75） | |
| Tool rest | Number of tool stations | 2/4 | 2/4 | |
| Tool section(turning/boring) | mm(in) | 32×32/φ60（1.26×1.26/φ2.36） | 32×32/φ80（1.26×1.26/φ3.15） | |
| Others | Power source | kVA | 60 | 60 |
| Dimension(L×W×H) | mm(in) | 3650X1810X1950（143.70X71.26X76.77） | 3650X1810X1950（143.70X71.26X76.77） | |
| Gross weight | kg(lbs) | 8000（17640） | 8200（18081） | |
Introduction
QK1212/QK1219 PIPE THREADING CNCLATHE is specially used for cutting threads on oil pipe. It has double chucksfor long pipe workpiece clamping, with gang tool post, it can make threads oninternal and external circle, face turning and chamfering.
