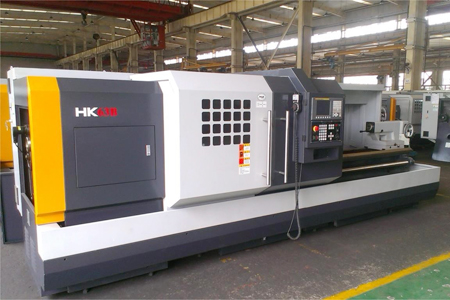

Flat Bed CNC Lathe Machine HK63Bx2000
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| ITEMS | UNIT | PARAMETERS | |
| HK63Bx2000 | |||
| Capacity | Max. swing over bed | mm | φ630 |
| Max. swing over slide | mm | φ360 | |
| Max. machining dia. | mm | φ630/φ500
(6-station turret) |
|
| Distance between centers | mm | 2000 | |
| Max. turning length | mm | 760(Vertical 4-station) | |
| Bed way width | mm | 560 | |
| Spindle | Spindle thru-hole | mm | φ105 |
| Spindle nose | A1-11 | ||
| Spindle speed | r/min | H 112~1120 M 37~373 L 20~210 | |
| Spindle motor power | kW | 11
(Freq. changing motor) |
|
| Feed | X travel | mm | 370 |
| Z travel | mm | 1810 | |
| X/Z-axis motor power | kW | 1.8/2.5 | |
| Tailstock | Quill diameter | mm | φ100 |
| Quill travel | mm | 250 | |
| Quill taper | Morse No.5 | ||
| Turret | X/Z-axis rapid traverse rate | m/min | 6/7 |
| Number of stations | 4/6 | ||
| Tool section | mm | 32×32 | |
| Others | Power source | kVA | 30 |
| Dimensions(L×W×H) | mm | 4500×2000×1850 | |
| Weight | kg | 5600 | |

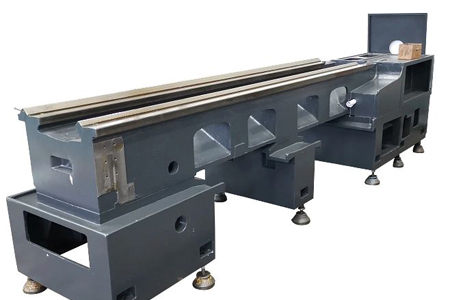

HK63B Series CNC lathes have high grade cast iron bed, and hardened and precision ground ways. It is rigid with wide span of bed ways and long lasting accuracy. Controlled by GSK980T. Capable of internal and external turning, taper turning, circular turning, facing, metric and inch threading and etc. Complete with 4-station power turret(standard) to satisfy different machining needs; with sliding doors to ensure safety production; with a centralized operator’s panel for ease of programming and operation. Suitable for small and medium sized batch production of multiple work, especially of complex and high precision work.
Standard Accessories:
FANUC 0i-mate TF(5) NC controller
GREENLAND spindle motor
FANUC X,Z axis servo motor
315mm manual chuck

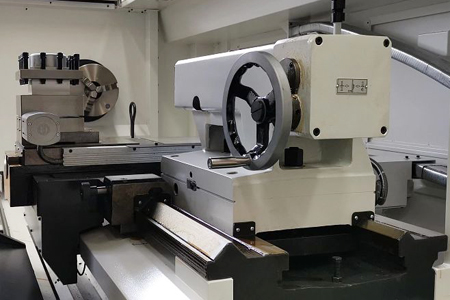

manual tailstock

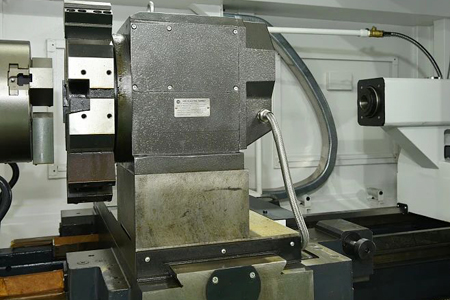

4-sation toolpost
Auto lubrication system
Auto coolant system
Work light
Installation damping pads
Technical documents
Optional Accessories
6-staiton turrets
12 inch 3-jaw HYDRAULIC chuck (through-hole diameter 90mm）
HYDRAULIC Tailstock
200mm Steady rest
