Die Sinker EDM Machine

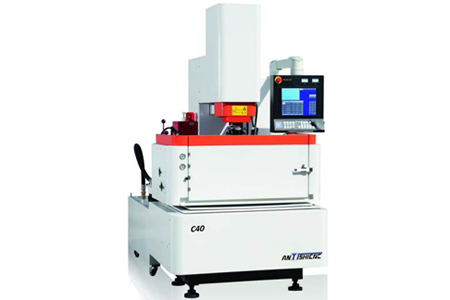

C40 CNC Mirror Discharge Die Sinker EDM Machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Specifications C40
Working fluid tank size (L*W*D) 980*650*400mm
Workbench (length and width) 680*420mm
X-axis travel 400mm
Y-axis travel 320mm
Z-axis travel 320mm
Maximum distance from electrode plate to table 600mm
Workbench maximum weight 500kg
Maximum electrode weight 50kg
Dimensions (L*W*H) 1500*2200*2400mm
Machine weight 2800kg
The input power of the whole machine 9kw
Maximum machining current 50A
Maximum processing power ≥500mm³/min
Minimum electrode loss 0.1%
best surface roughness Ra≤0.1mm
Minimum mechanical drive equivalent 1mm
Resolution of each axis 0.4
Input Keyboard, Computer mouse, Touch screen
Position command method Incremental/Absolute
EDM condition registration function 1000 conditions can be registered C000-C999
Bias function 1000 offsets can be registered H000-H999
Subroutine nesting level 50
Q instruction nesting level 7
number of coordinate systems 60

Equipment Introductions

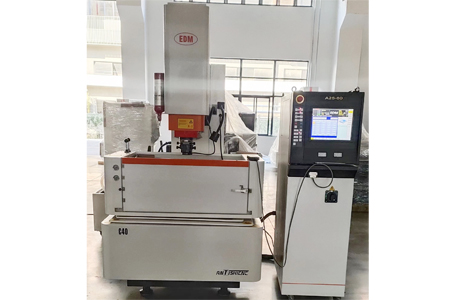

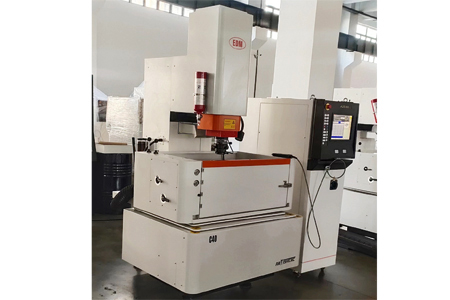

Shanghai ANTISHICNC “C40” is a fully CNC mirror EDM machine with three-axis arbitrary axis to realize “positive and negative” direction machining, and can realize multi-axis linkage machining. Each axis is directly driven by an all-imported AC servo motor and a precision ball screw to achieve higher machine tool precision control and processing speed. Equipped with the CNC power supply with high stability and high anti-interference ability of ANTISHI, you can obtain extremely low electrode loss of electric discharge machining, so that your mold processing precision is higher and the service life is longer.

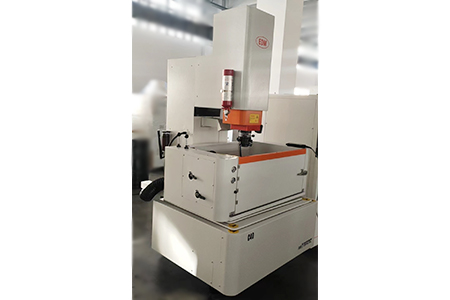

Overall structure: Based on the Swiss mechanical structure, the overall “C” type structure ensures the continuous retention of high-speed machining accuracy.

Castings: The castings of the whole machine are made of high-quality resin sand materials, which have been annealed and stressed for many times to ensure the best accuracy and durability, and will not be deformed after long-term use.

Base: With the “T”-shaped bed base, even when the heavy-duty workpiece is at the left and right ends of the machine tool, the machine tool still maintains good precision and processing stability.
All axes are directly driven by AC servo motors and precision ball screws, and the “Z” axis uses high-power AC servo motors.

All mechanical parts are subjected to a series of process control such as finishing – German ZEISSCMM inspection – hardcover – British RENISHAW laser interferometerinspection and other series of process controls to make the accuracy and stability better.

Workbench: Marble workbench, long-term use will not deform.
The perfect mechanical structure, high configuration and strict manufacturing process enable it to achieve the corresponding precision within 1 micron.
Compactness: The compact design concept of the body, fuel tank and electric cabinet, with a small footprint.

Standard Equipment
Machine C40
CNC pulse power supply model

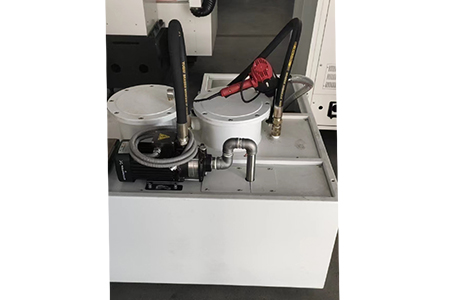

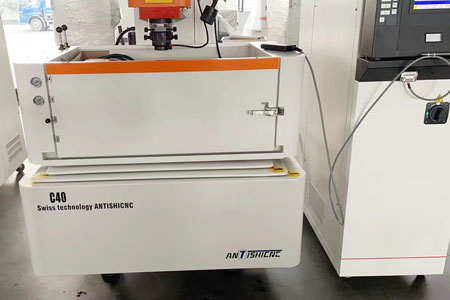

Working fluid tank

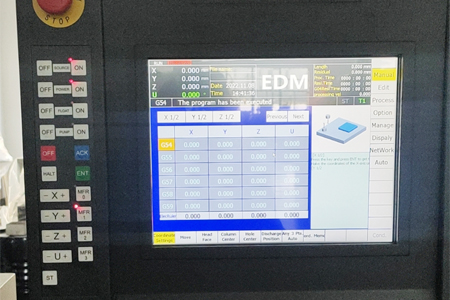

Infrared touch screen input system
TFT-LCD 15 inch liquid crystal display
Standard Toolbox and Fixtures
Bolts for adjusting the level of the main engine, and shims for adjusting the level of the main engine
user’s manual
Electronic disk device
X, Y, Z axis AC servo, encoder
Manual control box
Finishing circuit
Special processing circuit for cemented carbide (explosion-enhancing circuit)
AUTO (automatic machining) unit
Paper filter
Manual chuck
Machine tool work light
