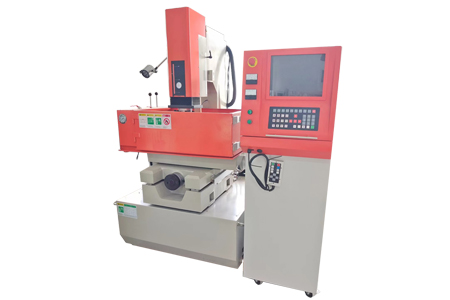

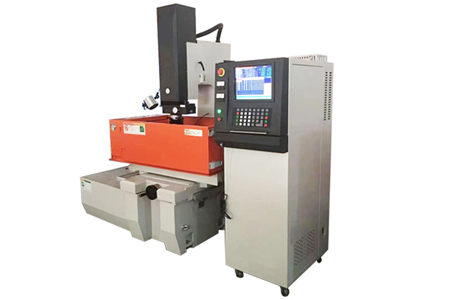

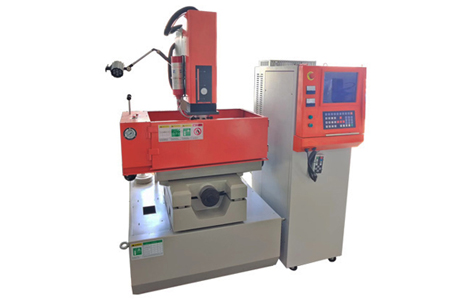

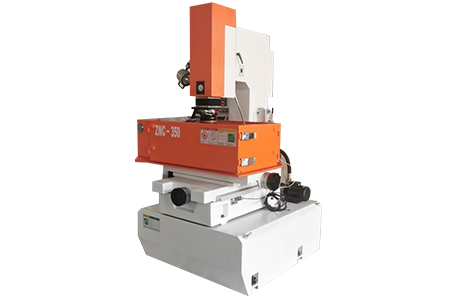

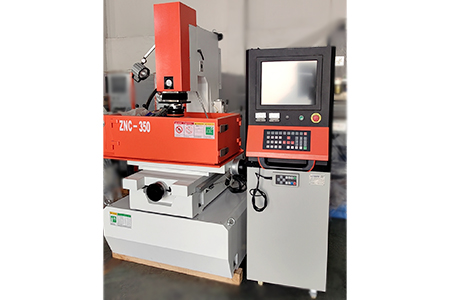

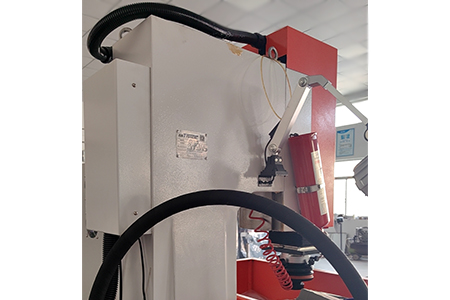

ZNC Series Die Sinker EDM Machine (Economic type)
Travel X-axis: 250 - 700 mm
Travel Y-axis: 350 - 1000 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specification| Model | ZNC350 | ZNC450 | ZNC540 | ZNC600 | ZNC1060 | |
| Workbench Size (mm) | 600×300 | 700×400 | 800×480 | 1000×600 | 1400×900 | |
| Work slot inner size (mm) | 780X500X350 | 1040X600X450 | 1250X770X500 | 1680X900X650 | 2000X1130X770 | |
| Y-axis left & right travel (mm) | 350 | 450 | 500 | 600/700 | 1000 | |
| X-axis front &rear travel (mm) | 250 | 350 | 400 | 500 | 700 | |
| Z-axis travel (mm) | Servo model | 160 | 200 | 220 | 400 | 450/600 |
| Manual model | 180 | 250 | 260 | NA | NA | |
| Maximum distance between spindle and worktable (mm) | 420 | 500 | 580 | 750/980/1230 | 906/1110/1260 | |
| Maximum electrode weight (kg) | 30 | 50 | 80 | 100 | 200 | |
| Maximum working weight (kg) | 680 | 1000 | 1500 | 2000 | 4000 | |
| EDM Machine weight (kg) | 1000 | 1300 | 1600 | 4000 | 6000 | |
| Packing Box size (mm) | 1460X1490X223 | 1450X1300X2200 | 1570X1600X2400 | 2120X1930X2540 | 2580X2730X3210 | |
| Filter box capacity (L) | 200 Liters | 240 Liters | 300 Liters | 840 Liters | 2000 Liters | |
| Filter weight (kg) | Built in | 180 | 200 | 300 | 1000kg *2 | |
ZNC EDM Control Box Specifications
| Maximum machining current | 50A | 75A | 100A |
| Max processing speed | 400mm/min | 400mm/min | 700mm/min |
| Minimum electrode consumption ratio | <0.3% | <0.3% | <0.3% |
| Best surface finish(um) | 0.3um/Ra | 0.3um/Ra | 0.3um/Ra |
| Maximum power consumption output (KVA) | 5KVA | 8KVA | 10KVA |
| The output voltage(VDC) | 100-250 | 100-250 | 100-250 |
| Machine Weight (kg) | 160/200(Net/Gross) | 160/200(Net/Gross) | 160/200(Net/Gross) |
| Packing Carton size (mm | 760X730X2100 | 760X730X2100 | 760X730X2100 |
Product Introduction :
EDM die sinking machine tools are mainly used for complex cavity and curved surface processing of various conductors such as various molds and precision parts manufacturing. It has the characteristics of high machining accuracy, high finish and fast speed. The appearance design of the EDM machine tool is beautiful and generous, the structure design is reasonable and compact, and the mechanical structure is firm and strong. The machine tool has good practical functions in terms of structural characteristics. We ANTS Machine offer high quality EDM die sinker machines with NC-controlled Z-axis and power outputs from 50 to 100 A. Slightly regulate parameters enable both the highest removal rate and finishing in a single operation cycle.
Product Features :
1. The structure of the machine has been analyzed and designed by computer for tensile, compressive and reactive forces, and the mechanical precision is always guaranteed.
2. The castings are made of FC-35 resin sand, which is durable and has the same precision after natural wind and various treatments.
3. Computer (CAD)-aided design is used for mechanical design, and the structure of the machine body is not deformed for a long time to ensure the machining accuracy.
4. The slide rail adopts V-shaped and flat design, which can slide lightly under heavy pressure and has excellent precision.
5. The work surface is ground by high wave heat treatment, and the surface is not easy to wear.
6. The X and Y axes are all imported or the same grade double nut ball screw, which is light in transmission and easy to use.
7. The main shaft adopts linear slide way, which can guarantee the precision and durability forever.
8. The carriage adopts imported “Teflon” guide rail veneer.
Distribution box Technical Indicators:
Maximum working current ≥60A
Maximum power consumption ≤6KVA
Maximum processing speed ≥450mmз/min
Minimum electrode consumption≤0.3%
Minimum surface roughness Ra≤0.3µm
Output voltage 90-260V

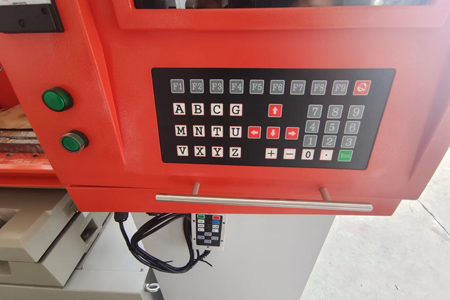

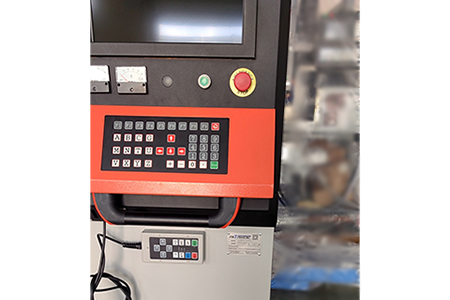

17-inch famous brand LCD monitor
Famous industrial computer
Special circuit board and electronic components of world famous brand.
EDM Sinker machine Standard configuration :
1. Z-axis adopts Swiss-made or similar linear slides, Japan NSK precision bearings.
2. China,Taiwan C7 grade X﹑Y ball screw, high precision Z axis plastic wire rod.
3. Japan original “Sanyo” servo motor. W-axis gear motor (1:25 60W or 90W).
4. China,Taiwan precision hand wheel, dial group, electrode chuck, Grundfos oil pumping motor.
5. Quartz lamps, fire extinguishers, liquid level switches, door seals, oil pipes, high-pressure oil pipes, pressure gauges, etc. are all from Taiwan,China.
6. Precision optical ruler (three axes).
7. Imported filters: 2 pcs
8. The machine tool paint is car paint, which is durable, beautiful, beautiful and does not fade.
Standard Equipment
| Description | Quantity | Description | Quantity |
| Toolbox | 1 EA | Drill chuck | 1 set |
| Fixed pressure plate | 1 group | Single nozzle fuel injection magnetic seat | 2 EA |
| Import fuel injection pipe | 1 group | Step horn | 1 group |
| Warning Signs (4 copies) | 1 set | round foot pad | 1 group |
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
