Universal lathe

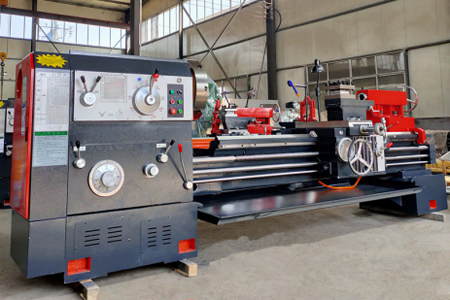

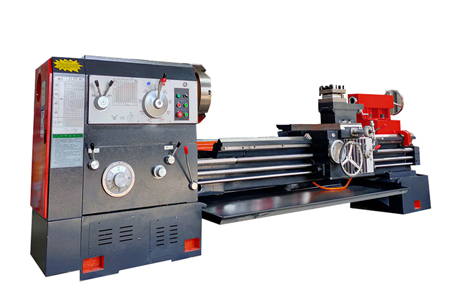

C6250 Universal lathe Machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Item Unit C6250-2000
Max  swing over bed Mm 500
Max turning diameter of the tool holder Mm 320
Max swing in gap Mm 720
Max workpiece length mm 2000
Spindletype C11
Spindle bore diameter mm Φ120
Spindle hole front taper Metric 120#
Top taper Mohs 6
Spindle speed r/min 7.5-1000 (18 kinds)
Vertical feeds mm/r Range 1:1 0.06-1.52(32kinds)

Range 16:1 1.6-24.3(32kinds)

Micro-feed range with exchange gear mm/r 0.06-0.912
Ratio of infeed to longitudinal infeed 1/2
Machine screw pitch mm 12
Metric thread mm 1-240 (50kinds)
British thread tpi 14-1 (26kinds)
Modular thread mm 0.5-120 (53kinds)
Diameter pitch thread tpi 28-1 (24kinds)
Max. Travel of lower toolpost Mm 315
Max. Travel of upper toolpost Mm 200
Tailstock sleeve Taper Mm 200
Tailstock sleeve travel Mm 250
Tailstock sleeve tapered hole Mohs 6
Bed rail width and quenching hardness mm 550 RC52
Bed rail hardness RC 52
main motor power kW 11
fast motor power kW 1.1
Cooling pump motor power kW 0.9
lathe weight kg 4000
Machine outline size (length x width x height) mm 4100×1380×1450

Product Description
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P. ;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
High anti twist water flat bed, high quality cast iron is carefully manufactured, and the guide surface is treated with intermediate frequency induction quenching precision;
The guide rail pair composed of polymerizing tetrafluoroethylene guide rail soft belt has good wear resistance, vibration absorption and precision retention;
The spindle adopts three support structure, with good rigidity, high precision and strong cutting;
Wide speed regulation range and reasonable speed can be selected;
lt can directly turn metric and inch threads;
In addition to conventional turning, saddle lathe can also turn all kinds of flat and special-shaped parts;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50HZ,60HZ).

Product Application:

A lathe is a machine tool that mainly uses turning tools to turn rotating workpieces. Lathes are the most important type of cutting machine tools among metal cutting machine tools. In general machine manufacturing factories, lathes are the most numerous and are also called work machines. Drills, reamers, reamers, taps, dies and knurling tools can also be used for corresponding processing on the lathe. The function of the lathe is to cut rotating surfaces of various sizes and shapes, as well as spiral surfaces.

Product Standard Equipment

Name Quantity
Machine tool 1
3-jaw chuck and adapte 1
Faceplate 1
Steady rest 1
Drill chuck 1
Digital readout (3 AXIS) 1
Suitable wrench 1
4-jaw chuck and adapte 10
4-station conventional tool post 1
Follow rest 1
LED work lamp 1
Dead center 1
Oil gun 1
