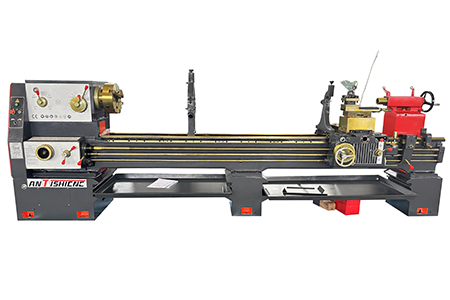

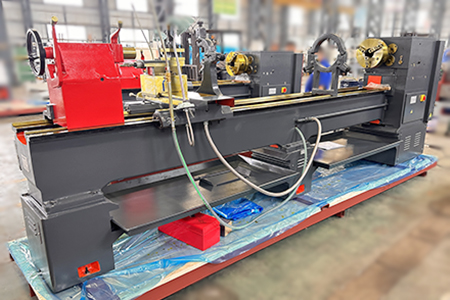

CA6180Cx3000 Conventional Universal Horizontal Parallel Lathe Machine

Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

Threading Inch, Metric, Module and D.P. ;

CA6180 series ordinary horizontal lathe is suitable for turning internal and external cylindrical surfaces, conical surfaces and other rotating surfaces, turning various metric, inch, modulus and diametral pitch threads, and can perform drilling and pulling oil grooves, etc. It is very versatile. The horizontal lathe is widely used in batch processing of various shaft and disk parts.

The bed of this series of lathes is wider than ordinary lathes, and the width of the guide rail is 400mm, which has high rigidity. The surface of the guide rail is quenched by intermediate frequency, which is durable and wear-resistant.

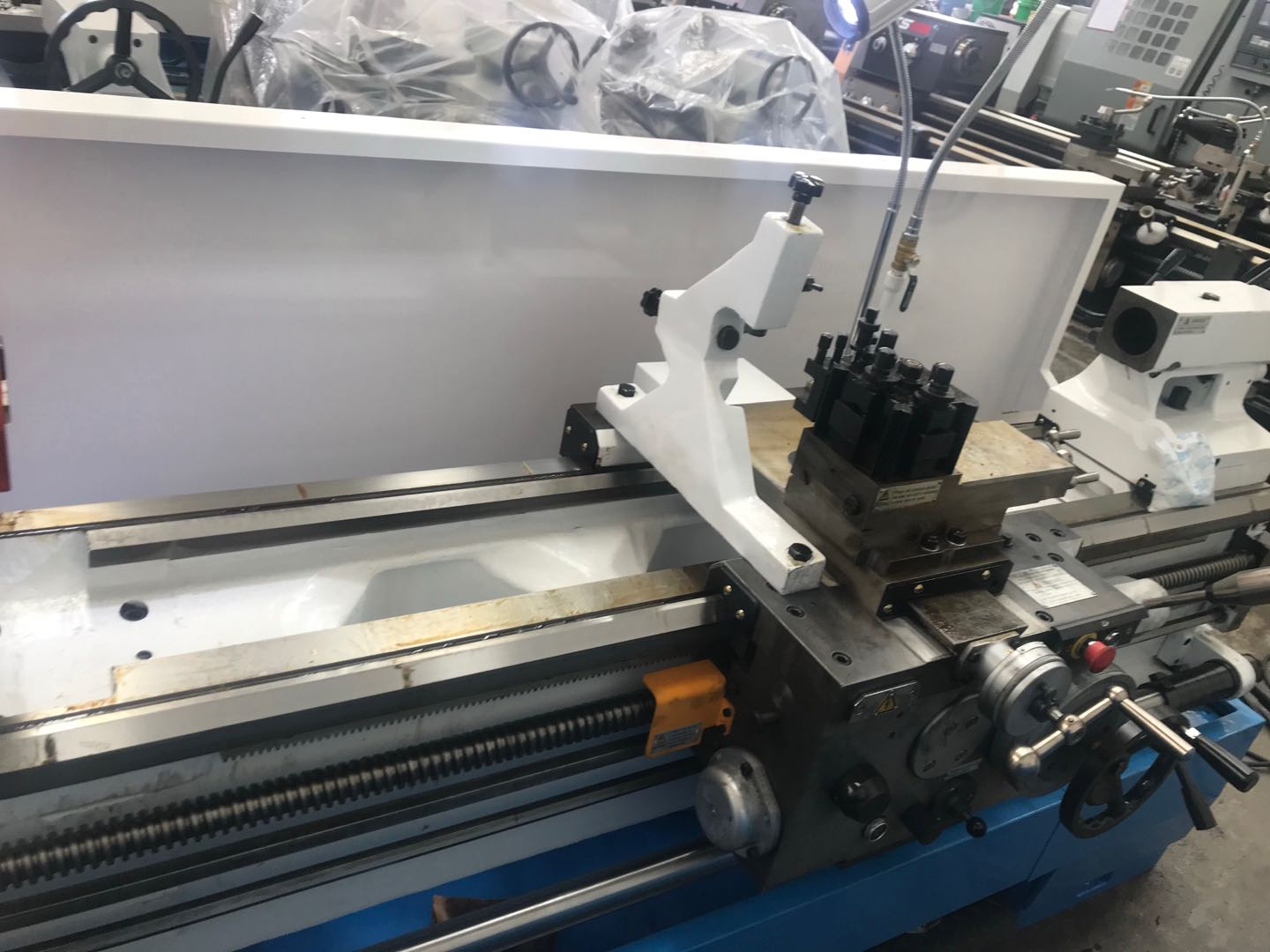

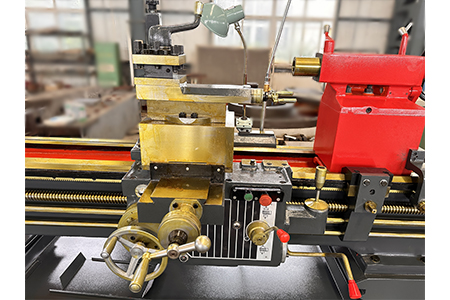

The operation of the machine tool is flexible and centralized, and the sliding plate is equipped with a fast-moving mechanism. It adopts single-handle visual operation, which is pleasant.

The structural rigidity and transmission rigidity of the machine tool are higher than that of ordinary lathes, and the power utilization rate is high, which is suitable for strong cutting.

Before leaving the factory, the machine tool is inspected in strict accordance with the inspection procedures, and a strong cutting test is done to ensure that the machine tool has good precision stability and processing reliability.

These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50HZ,60HZ).

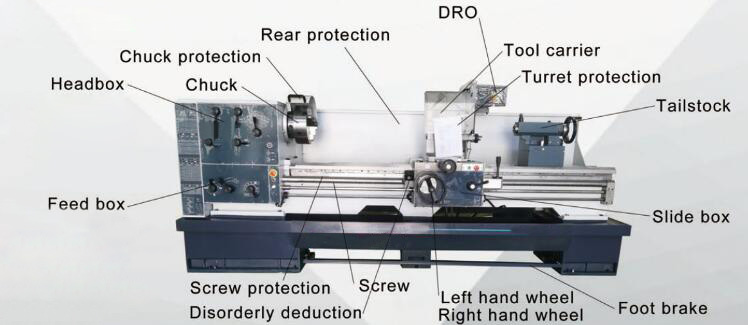

Product Parts

1.Manual scraping and grinding between the joint surfaces of the bed head box, the bed, the tailstock, the pallet, etc., and the whole machine has been strictly tested to effectively ensure the accuracy and stability of the machine tool.

2.The machine tool is made of high-strength cast iron, with special copper and chromium materials added. The width of the bed guide rail is 400mm, and the quenching depth of the bed guide rail reaches 5mm, which effectively improves the wear resistance and stability of the machine tool.

3.The cycloidal pump is used for the lubrication of the bedside box of the machine tool. For the hot weather, the cleanliness and heat dissipation characteristics of the bedside box are guaranteed, and the service life of the bearings and gears is effectively extended.

4.The spindle of the machine tool adopts precision bearings, the through hole of the spindle is φ80 &φ105mm, and the gears of the machine tool are precision ground, which effectively improves the hardness of the gears and reduces the noise of the machine tool.

5.The machine tool adopts domestic brand lead screw, and the screw nut adopts high-quality bronze alloy to ensure wear resistance and precision retention.

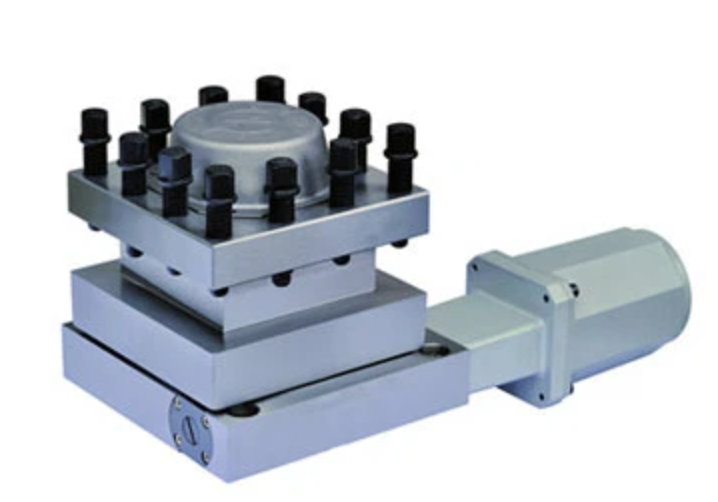

6.The machine tool adopts a four-station high-strength tool holder, and the size of the tool handle: 25x25mm.
