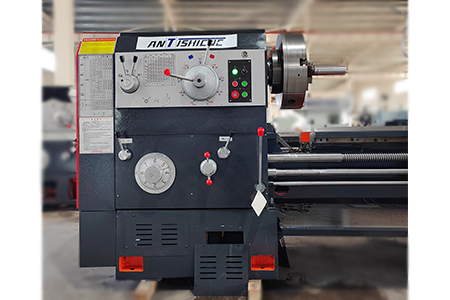

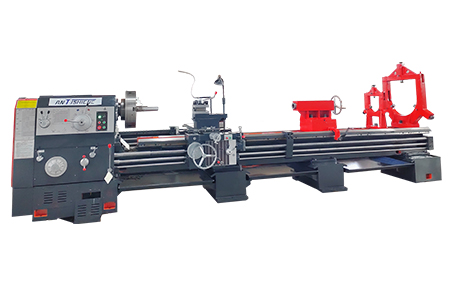

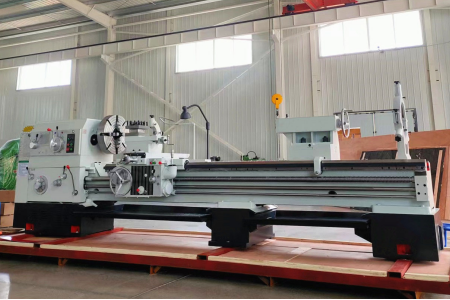

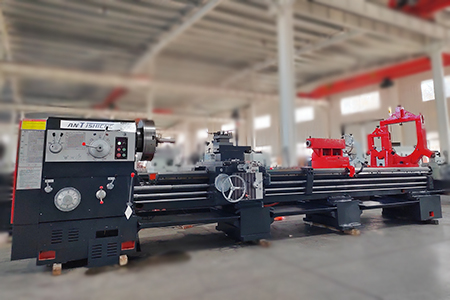

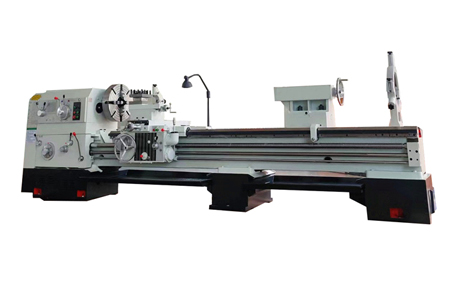

C6280 Universal lathe Machine
Max swing over bed : 800 mm
Max swing in gap : 960 mm
Max workpiece length : 4000mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | C6280-4000 |
| Max swing over bed | Mm | 800 |
| Max turning diameter of the tool holder | Mm | 520 |
| Max swing in gap | Mm | 960 |
| Max workpiece length | mm | 4000 |
| Turning length | mm | 3850 |
| Spindle bore diameter | mm | Φ130 |
| Spindle hole front taper | Metric 120# | |
| Top taper | Mohs 6 | |
| Spindle speed | r/min | 18、7.5-1000 |
| Vertical and horizontal feeds | 64 each | |
| Gap fast move | mm/min | 4000 |
| Max. Travel of lower toolpost | Mm | 390 |
| Max. Travel of upper toolpost | Mm | 200 |
| Tailstock sleeve diameter | Mm | Φ100 |
| Tailstock sleeve travel | Mm | 250 |
| Tailstock sleeve tapered hole | Mohs 6 | |
| Main motor power | Kw | 11 |
| Motor Power | Kw | 1.1 |
| Bed rail width | Mm | 550 |
| Machine size | Mm | 6100*1400*1575 |
| Machine Weight | Kg | 5600 |
Product Description
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P. ;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
High anti twist water flat bed, high quality cast iron is carefully manufactured, and the guide surface is treated with intermediate frequency induction quenching precision;
The guide rail pair composed of polymerizing tetrafluoroethylene guide rail soft belt has good wear resistance, vibration absorption and precision retention;
The spindle adopts three support structure, with good rigidity, high precision and strong cutting;
Wide speed regulation range and reasonable speed can be selected;
lt can directly turn metric and inch threads;
In addition to conventional turning, saddle lathe can also turn all kinds of flat and special-shaped parts;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50HZ,60HZ).
Product Application:
A lathe is a machine tool that mainly uses turning tools to turn rotating workpieces. Lathes are the most important type of cutting machine tools among metal cutting machine tools. In general machine manufacturing factories, lathes are the most numerous and are also called work machines. Drills, reamers, reamers, taps, dies and knurling tools can also be used for corresponding processing on the lathe. The function of the lathe is to cut rotating surfaces of various sizes and shapes, as well as spiral surfaces.
Product Standard Equipment
| Name | Quantity |
| Machine tool | 1 |
| 3-jaw chuck and adapte | 1 |
| Faceplate | 1 |

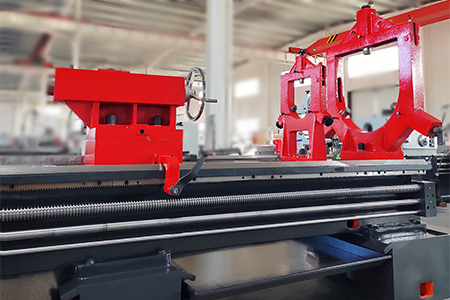

| Steady rest | 1 |
| Drill chuck | 1 |
| Digital readout (3 AXIS) | 1 |
| Suitable wrench | 1 |
| 4-jaw chuck and adapte | 10 |
| 4-station conventional tool post | 1 |
| Follow rest | 1 |
| LED work lamp | 1 |
| Dead center | 1 |
| Oil gun | 1 |
