Universal lathe

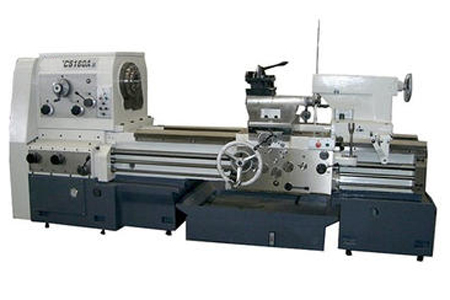

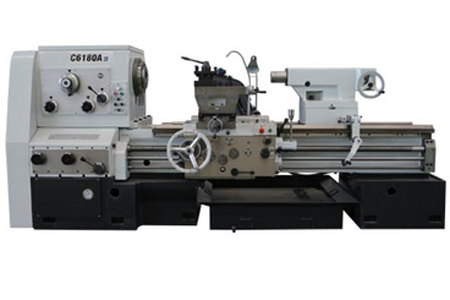

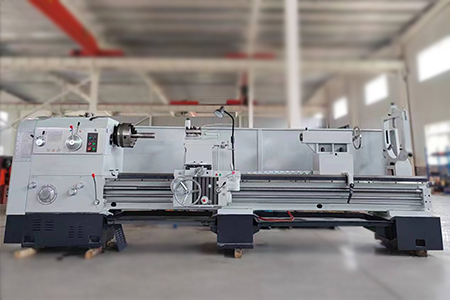

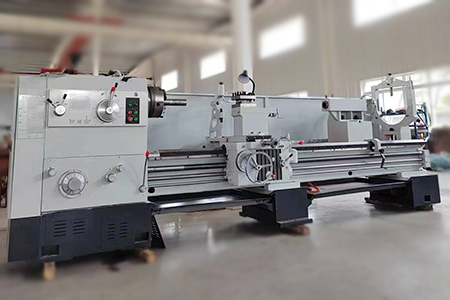

C6180A Universal Lathe

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Description Unit Parameter
Capacity Max swing over bed mm Φ830
Max swing over slide mm Φ540
Max. distance between centers mm 1500/2000/3000/4000
Max. machining length mm 1400/1900/2900/3900
Bed way width mm 560
Spindle Spindle aperture diameter mm φ105
Spindle hole taper 1:20(metric taper)
Spindle nose A1-11
Spindle speed r/min 14 steps 12.5-1120
Feed and thread Max travel of upper tool rest mm 200
Max travel of lower tool rest mm 515
Tool section mm 32×32
Crosswise feed mm/r 64 sorts 0.031-7.0
Longitudinal feed mm/r 64 sorts 0.062-14.0
Metric thread mm 38 sorts 0.5-56
Inch thread t.p.i 43 sorts 56-0.5
Module thread πmm 21 sorts 0.25-7
D.P. thread DP 27 sorts 56-4
Tailstock Quill dia. mm φ100
Max quill travel mm 250
Taper hole (Morse) Morse taper No.5
Motor Main motor kW 11
Coolant pump motor kW 0.18
Others Machine length mm 3500/4000/5000/6000
Machine width mm 1370
Machine height mm 1470
Total weight kg 4500/4800/5300/6100

Product Introduction:

This lathe is able to perform internal/external cylindrical turning, taper turning and other sort of turnings, facing, threading such as Metric, Inch, Module and D.P threads; drilling, reaming, tapping and grooving, etc.

Product Features

(1) Distortion resistant horizontal bed made of quality cast iron; induction hardened guide way, 560mm wide span.

(2) Mating part of the guide way stuck with teflon tape is wearable, shock proof and accuracy lasting.

(3) The spindle is in three support design, high rigid, high accurate and able to perform heavy cut. Diameter of spindle thru-hole is Φ105mm.

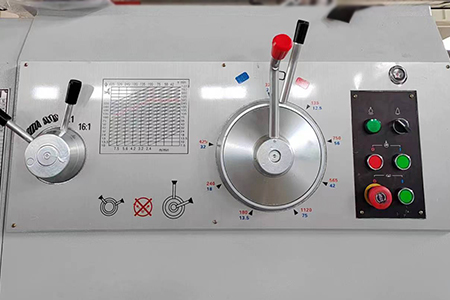

(4) Wide range of 14 step speeds always allows selecting desired speed.

(5) Direct cutting of metric and inch threads.

(6) The spindle can be rotated in jogging mode. Braking is quick.

Standard Equipment
3-jaw chuck and adapter
4-jaw chuck and adapter(For C6180A)
4-station conventional tool post
Drive plate
Faceplate(For C6180A)
Steady rest
Follow rest
The Full-longitudinal chip guard (Movable type for 3000mm)
LED work lamp
Dead center and center sleeve
Hook spanner
Oil gun

Optional Equipment
Live Center
Thread chasing dial
Mechanical feed stop
Single set feed stop
Quick change tool post(American /Italy/European type)
Chuck guard
Tool-post guard
Taper turning attachment
Digital readout(2/3 AXIS)
Siemens electrical appliances
Quick release
Screw protection
