Technical Parameter :
| Item | Unit | CK40 | CK40.1000 | CK40S | CK40C | CK50 | CK50S | CK50C | |
| Capacity | Max. swing over bed | mm(in) | Φ400
(15.748) |
Φ400
(15.748) |
Φ400
(15.748) |
Φ400
(15.748) |
Φ500
(19.685) |
Φ500
(19.685) |
Φ500
(19.685) |
| Max. swing over slide | mm(in) | Φ260
(10.236) |
Φ260
(10.236) |
Φ260
(10.236) |
Φ260
(10.236) |
Φ320
(12.598) |
Φ320
(12.598) |
Φ240
(9.449) |
|
| Max. turning length | mm(in) | 400
(15.748) |
1000
(39.370) |
400
(15.748) |
400
(15.748) |
500
(19.685) |
500
(19.685) |
500
(19.685) |
|
| Max. turning dia. | mm(in) | Φ285
(11.220) |
Φ285
(11.220) |
Φ285
(11.220) |
Φ285
(11.220) |
φ370
(14.567) |
φ370
(14.567) |
φ370
(14.567) |
|
| Max. bar dia. | mm(in) | Φ42
(1.654) |
Φ42
(1.654) |
Φ42
(1.654) |
Φ42
(1.654) |
φ51
(2) |
φ51
(2) |
φ51
(2) |
|
| Spindle | Hydraulic chuck dia. | mm(in) | Φ165
(6”) |
Φ165
(6”) |
Φ165
(6”) |
Φ165
(6”) |
φ210
(8) |
φ210
(8) |
φ210
(8) |
| Spindle nose | A2-5 | A2-5 | A2-5 | A2-5 | A2-6 | A2-6 | A2-6 | ||
| Spindle thru-hole | mm(in) | Φ57
(2.244) |
Φ57
(2.244) |
Φ57
(2.244) |
Φ57
(2.244) |
φ62
(2.441) |
φ62
(2.441) |
φ62
(2.441) |
|
| Spindle speed | r/min | 70-3000 | 70-3000 | 70-3000 | 80-4500 | 60-2250 | 60-2250 | 40-4000 | |
| Power of main motor | Kw
(hp) |
7.5
(10.2) |
7.5
(10.2) |
7.5
(10.2) |
7.5
(10.2) |
15
(20.4) |
11
(15) |
11
(15) |
|
| Tailstock | Quill dia./travel | mm(in) | Φ70/80
(2.756/3.150) |
Φ70/80
(2.756/3.150) |
Φ70/80
(2.756/3.150) |
Φ70/80
(2.756/3.150) |
Φ90/100
(3.543/3.937) |
Φ90/100
(3.543/3.937) |
Φ90/100
(3.543/3.937) |
| Quill taper hole | MT No. | 4 | 4 | 4 | 4 | 5 | 5 | 5 | |
| Carriage | Slant angle | DEG | 45° | 45° | 45° | 45° | 45° | 45° | 45° |
| Travel X/Z | mm(in) | 165/410
(6.496/16.142) |
165/1030
(6.496/40.551) |
165/410
(6.496/16.142) |
165/410
(6.496/16.142) |
210/550
(8.268/21.654) |
210/550
(8.268/21.654) |
210/550
(8.268/21.654) |
|
| Rapid traverse X/Z | m/min
(ipm) |
12/16
(472/623) |
12/16
(472/623) |
12/16
(472/623) |
30/24
(1181/945) |
12/16
(472/630) |
12/16
(472/630) |
24/24
(945/945) |
|
| Turret | Number of station | 8/12 | 8/12 | 8/12 | 8/12 | 8/12 | 12/8 | 12/8 | |
| Tool size (turning/boring) | mm | 20×20/Φ32 | 20×20/Φ32 | 20×20/Φ32 | 20×20/Φ32 | 25×25/Φ40 | 25×25/Φ40 | 25×25/Φ40 | |
| Others | Power source | kVA | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Dimensions
(L×W×H) |
mm(in) | 2370×1670×1970
(93.3×65.7×77.6) |
3200×1700×1910
(126×66.9×75.2) |
2370×1670×1970
(93.3×65.7×77.6) |
2370×1670×1970
(93.3×65.7×77.6) |
2860×1830×2020
(112.6×72×79.5 ) |
2860×1830×2020
(112.6×72×79.5 ) |
2860×1830×2020
(112.6×72×79.5 ) |
|
| Gross weight | Kg
(lbs) |
3000
(6,615) |
4500
(9,923) |
3000
(6,615) |
3000
(6,615) |
4500
(9,923) |
4500
(9,923) |
4500
(9,923) |
|
Introduction

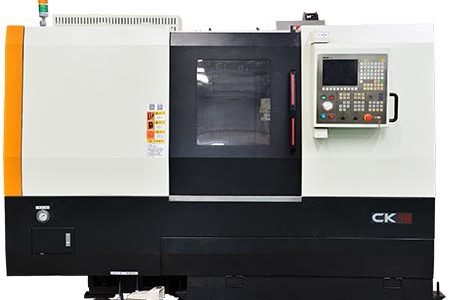

CK40/50 seriesCNC lathe, machine bed adopts high grade cast iron, slant guideways,through-hole spindle and dampening design. The multi-station power turretindexes fast continuously in bi-direction..
This series lathe can be equipped with FANUC0i-TF(5), Siemens 828D or other control systems. It is applicable tosemi-finish and finish processes of small or medium workpieces.
