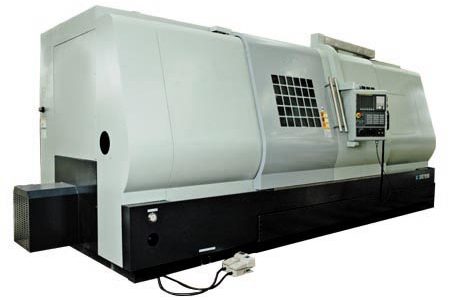

CK43 series CNC lathe of crank connecting neck
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Unit | Data | |
| CK4363 | CK4375 | ||
| Max. swing | mm(in) | Φ670(Φ26.378) | Φ850(Φ33.465) |
| Max. machining length of crank | mm(in) | 800(31.496) | 1500(59.055) |
| Max. turning dia. | mm(in) | Φ450(17.717) | Φ550(21.654) |
| Dia. of jig | mm(in) | Φ320(12.598) | Φ380(14.961) |
| Spindle nose | A2-8 (GB5900.1) | A2-11 (GB5900.1) | |
| Spindle speed | r/min(rpm) | 50–1200 | 30–1200 |
| Power of main motor
(cont/30 min) |
kW(hp) | 22/30(29.9/40.8) | 22/30(29.9/40.8) |
| X/Z-axis travel | mm(in) | 260/800 (10.236/31.496) | 380/1500 (14.961/59.055) |
| X/Z-axis rapid traverse | m/min(ipm) | 12/16(472/630) | 10/12(394/472) |
| Tool disk (dia. × width) | mm(in) | Φ650×16 (Φ25.591×0.63) | Φ750×24 (Φ29.528×0.945) |
Introduction
CK43 serieslathe is designed for automotive industry to machine crank connecting necks.crank connecting necks semi-finish or finish process via eccentric jigs drivenby the right and the left headstocks.
This lathe consists of bed, leftheadstock, right headstock, left jig, right jig, slide, turret (with a12-station indexing disk), NC control system, electric system, cooling system,lubrication system and guards. Horizontal machine bed and base are made withhigh-grade cast, high rigidity, wide rectangular hardened guide ways. Machinesaddle and cross slide are made with high-grade case, the guideways areturcited and with less dynamic and static friction.
The spindle is arranged by FAG large diameter precision angular contact bi-directional thrust ballbearings and double row cylindrical roller bearings, which have good stiffness.The X and Z axis ball screw adopts pre-stretched nut structure, and thesupporting bearing adopts Japanese NSK angular contact special bearing, whichgreatly improves the stiffness and thermal deformation resistance of the screw,and greatly improves the feed accuracy. The turret adopts 12-positionhorizontal electric turret of Italian DM Company.
