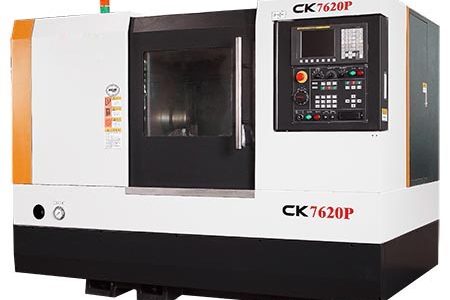

CK7620P CNC lathe
finish turning of small short shaft type and chuck type workpieces ;
cylinder turning, taper turning,arc turning and threading turning ;
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| ITEMS | UNIT | CK7620P | |
| Capacity | Max.swing diameter over bed | mm（in） | φ400（15.748） |
| Max.swing dia. over slide | mm（in） | φ105(4.134) | |
| Turning dia./length | mm（in） | φ100/180(3.937/7.087) | |
| Max.turning diameter | mm（in） | φ200(7.874) | |
| Max.bar diameter (hollow chuck/collet) | mm（in） | φ51/φ42(2/1.654) | |
| Spindle | Hydraulic chuck dia | mm（in） | φ210(8) |
| Type of spindle nose | A2-6 | ||
| Spindle bore diameter | mm（in） | φ62(2.441) | |
| Spindle speeds | r/min(rpm) | 90-4000 | |
| Spindle motor power(continuous/30min) | kW(hp) | 7.5/11(10/15) | |
| Carriage | Slant angle | DEG | 60° |
| X/Z-axis travel | mm（in） | 400/300(15.748/11.811) | |
| Rapid traverse rate X/Z | m/min(ipm) | 16/16(βmotor)(630/630) | |
| Turret | Number of turret station | 6-8 | |
| Tool size（turning/boring） | mm | 20×20/φ32 | |
| Other | Power source | kVA | 20 |
| Dimensions（LXWXH） | mm（in） | 2300x1480x1750
(90.6 x 58.3×68.9) |
|
| Total weight | Kg(lbs) | 3200(7,056) | |
CK7620P CNC lathe Product Introduction :
Introduction
CK7620P CNC lathe is designed for rough and finish turning of small short shaft type and chuck type workpieces in automobile,motorbike and valve industries.
It features a 60°slant bed ,rigid and easy forchip removal. Longitudinal and cross linear rolling rails reduce friction andensure running without vibration. Comb-type tool post is compact, can perform cylinder turning, taper turning,arc turning and threading turning with complete functions.
