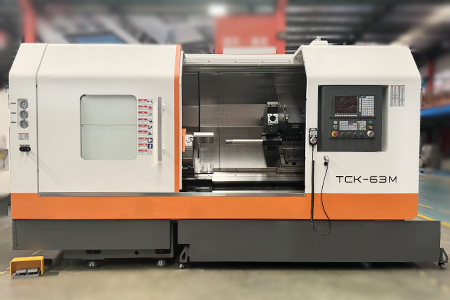

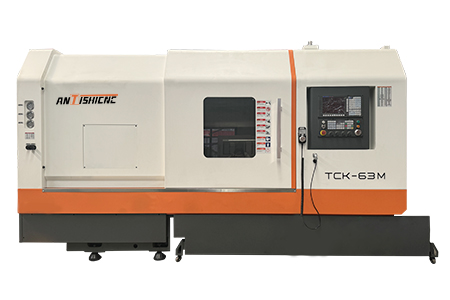

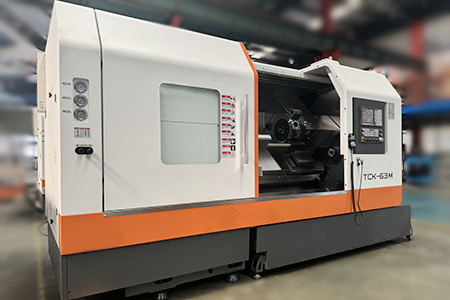

TCK63Mx1000 Slant Bed CNC lathe Machine
Max. swing over bed: Φ650mm
Max. swing over slide: Φ470mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Units | TCK63Mx1000 | |
| Maximum rotation diameter on the bed | mm | Φ650 | |
| Maximum rotation diameter on the slide | mm | Φ470 | |
| Center distance | mm | 1320 | |
| Maximum disc processing diameter | Φ550 | ||
| Maximum turning length | mm | 900 | |
| Spindle end type | A2-11 | ||
| Spindle through hole diameter | mm | Φ103 | |
| Bar diameter | mm | Φ100 | |
| Hydraulic chuck | “ | 15 inch | |
| Hollow hydraulic chuck tie rod through hole | mm | Φ90 | |
| Guide rail type | / | Hard rail | |
| Spindle taper | No | Metric 110# | |
| Spindle speed | rpm | Continuously variable speed/1500rpm | |
| Reduction gearbox transmission ratio | / | ||
| Tailstock sleeve diameter | mm | 100 | |
| Tailstock sleeve inner hole taper | No | Morse 5# | |
| Tailstock sleeve stroke | mm | 120 | |
| Tailstock type | Hydraulic sleeve | ||
| Tailstock stroke | mm | 1250 | |
| Turret | Position | 12-station power turret/BMT65 | |
| Tool square size | mm | 32X32/Æ40 | |
| Screw Model | X direction | 4005 | |
| Z direction | 5010 | ||
| X/Z fast moving speed | m/min | 10/10 | |
| X travel | mm | 325 | |
| Z travel | mm | 1030 | |
| Minimum setting unit | mm | 0.001 | |
| Main motor power | KW | 18.5/22 | |
| Total power | KW | 22/27 | |
| Net weight of machine tool | Kg | 6000 | |
| Dimensions (L*W*H) | mm | 3900（4950 with chip conveyor）*1900*2300 | |
TCK63Mx1000 Slant Bed CNC lathe Machine Product Introduction :

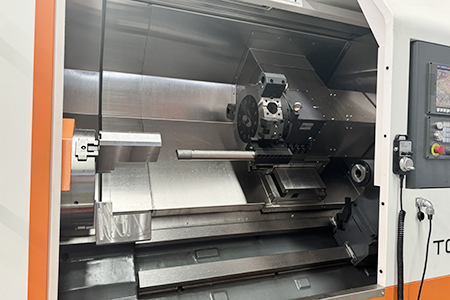

This series of machine tools is the mature product mainly exported by Shanghai ANTISHICNC. The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention. It adopts a 45° overall inclined bed structure and is equipped with high-precision pre-loaded Taiwan linear roller guides. The machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining. It is precisely assembled with a high-precision spindle unit and a spindle box.
Standard Equipment
| Part Name | Specifications | Quantity | Supplier | |
| CNC system | FANUC 0ITF | 1 set | FANUC | |
| Spindle motor | 18.5KW | 1 set | CTB | |
| Ball Screw | X direction | 4005 | 1 set | HIWIN/PMI |
| Z direction | 5010 | 1 set | HIWIN/PMI | |
| Turret Tool | TCS125-12T/TCSD125-12T | 1 set | TAIWAN | |
| Automatic lubrication device | 1 set | CHINA | ||
| Cooling pump | 450W | 1 set | CHINA | |
| Hydraulic station | 2kw | 1 set | CHINA | |
| Hydraulic chuck | KY15-3 | 1 set | CHINA | |
| Chip conveyor | Chain plate type | 1 set | CHINA | |
Optional accessories
| Name | Specifications |
| Control System | GSK/SIEMENS |
