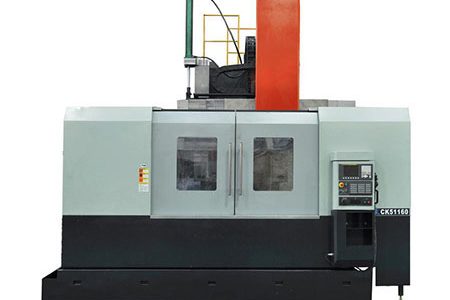

CK51160CNC VERTICAL LATHE
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| items | parameters | |
| capacity | Table dia. mm(in) | φ1250(49.212)（可选φ1400(55.118)） |
| Max.swing dia mm(in) | φ1600(62.992) | |
| Max.turning dia mm(in) | φ1600(62.992) | |
| Max.work length mm(in) | 1200(47.244) | |
| Max.work weight kg(lbs) | 8000(17640) | |
| table | table speeds r/min(rpm) | 2~320 |
| Max.torque of table Nm(ft-lb) | 10630(7839.233) | |
| Main motor power(con/30min) kW(hp) | 37(50.32)/45(61.2)(α40) | |
| feeds | X-axis travel mm(in) | 1045(41.141) |
| crossrail up and down distance mm(in) | 800(31.496) | |
| Z-axis travel of ram mm(in) | 900(35.433) | |
| Crossrail up and down speed mm/min(ipm) | 2400(94.48) | |
| X/Z-axis rapid travel speed mm/min(ipm) | 10(393.7)/10(393.7) | |
| servo motor torque(X/Z) N.m(ft-bl) | 30(22.123)/22(16.224) | |
| servo motor power(X/Z) kW(hp) | 7.0(9.52)/4.0(5.44) | |
| ball screw dia. X/Z mm | Φ63 /Φ50 | |
| turret | Tool station number | 4 |
| Tool section(turning/ boring) mm | 40X40 | |
| others | Power source kVA | 75 |
| Dimensions (L×M×H) mm (in) | 4850(19.1)X4800(189)X5100(200.8)(不含排屑器)
(chip conveyer non-included) |
|
| Gross weight(ibs) kg | 24000(52920) |
Introduction
CK51160 vertical CNC lathe has movablecrossbeam and T ram, with Fanuc 0i TF(1) control, suitable for machining internal and external cylinder surface, circular conical surface, curved surface, metric and inch threading on taper big size disk type and short shaft workpieces.
