Slotting Shaping Machine
|Swing over bed||mm||1250/1600||2000/2500|
|Max.travelling distance of saddle||mm||1000||1000|
|Max.load between centers||ton||2.5||4|
|Bed width||mm||1100 (Two guide rails)||1100 (Two guide rails)|
|Spindle speed||rpm||2~200||1~ 125|
|Machine weight of 1 meters||kg||5800||6800|
|Add weight per meter||kg||—||—|
|Machine outline size of 1 meters||L* w * h||4500X2500X1650||4500X2500X1650|

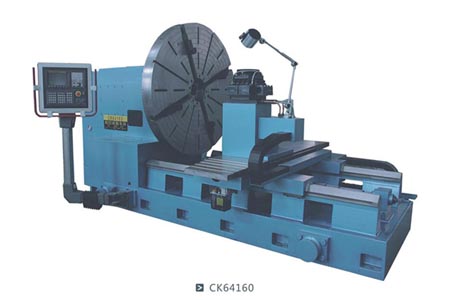

This machine tool is particularly suitable for the turning of discs.
It can turn the inner and outer cylindrical surfaces, end faces, curved surfaces, arcs and other forming surfaces of various parts. It can process ferrous metals, non-ferrous metals and their easy-cutting non-metal materials.
This machine tool has the inherent characteristics of good rigidity, high precision and good precision retention. It is equipped with a numerical control system, which is safe and reliable, and can well ensure the reliability of the machine tool. The pulse encoder is used as the detection element. The longitudinal and transverse feeds are driven by servo motors. The ball screw constitutes a semi-closed loop control and is equipped with CRT display. It has tool compensation, fault diagnosis, and processing simultaneous programming. The main transmission system is gear transmission. The layout of the whole machine tool is compact and reasonable, and the pleasantness is good. The saddle and slide plate have high resistance to adhesion. The soft belt with abrasive performance greatly improves the service life and has better accuracy retention.
