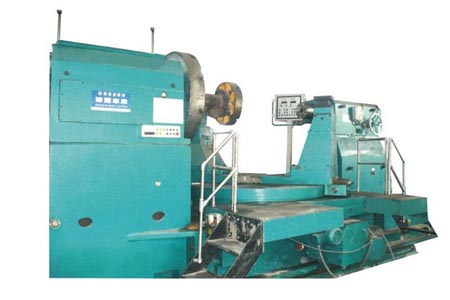

    • Spherical lathe

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Main specifications unit C65150 C65200 C65220
    Swing over bed mm 2250 3200 3300
    The diameter range of

    spherical surface processing

    (outside- -sphere)

    		 mm 600~ 1500 1000~ 2000 1000 ~ 2200
    The diameter range of spherical surface

    Processing(linner- sphere)

    		 m 800~ 1400 1000~ 1500 1000~ 1500
    Max.load between centers ton 6 15 18
    Bed width mm 1100 1600 1600
    Spindle speed rpm 2.5 ~ 250 2.5~ 125 2.5~ 125
    Spindle motor kw AC22 DC55 DC55
    Machine weight of 3 meters kg 14500 16500 17200
    Add weight per meter kg 1250 2250 2250
    Machine outline size of 3 meters L* w * h 6800X2200X2450 8000X2680X3050 8000X2680X3100
