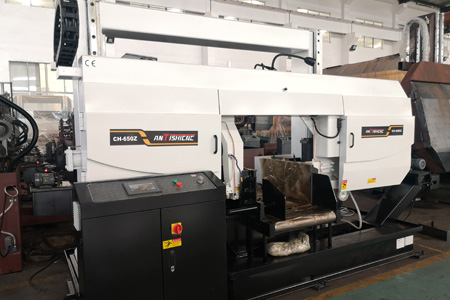

Fully Automatic PLC Control Horizontal Straight Cutting Bandsaws GZ4265（CH-650HA)
Round : 650mm
Quadrate : 650×650mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications| Model | GZ4265(CH-650HA) |
| Cutting capacity 0° (flat) (length x width) | 650x650mm |
| Cutting capacity 0° (round) | 650mm |
| Cutting capacity 0° (square) | 650x650mm |
| Cutting speed infinitely variable | 20~80m/min(inverter) |
| Stop length(single stroke) | 500mm |
| Accuracy of the feeding(single feeding) | ±0.2mm |
| Saw blade size | 54×1.6×7420 |
| Saw blade tension type | Hydrualic |
| Workbench height | 650mm |
| Motor rating main drive | 7.5kw |
| Motor rating of hydraulic feed | 2.2kw |
| Overall dimensions (length x width x height) | 2180x3570x2450mm |
| Weight(NET WEIGHT) | 6000kg |
Product Details
The ANTISHI company GZ Series PLC control fully automatic metal cutting bandsaw machine is a robust, modern-to-use workshop saw for precise sawing of medium diameters. All operating switches are clearly grouped on a touchscreen and control panel. The machine aims to the fully-automatic control as it’s main feature. Using PLC touch screen panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the work-piece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy.

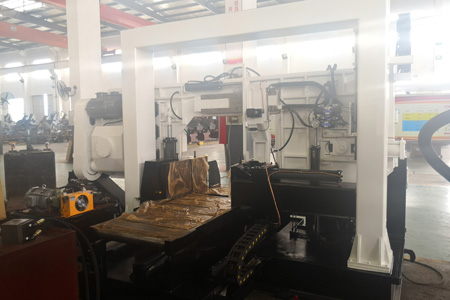

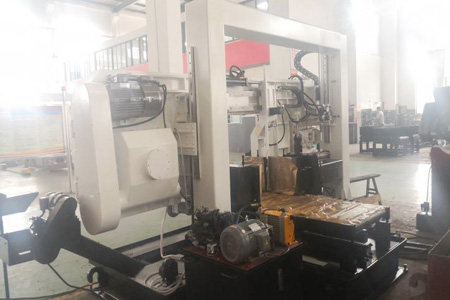

GZ series band saws, which are designed for straight cuts in larger work-pieces made of steel, cast iron and other metals. The rigid dual column frame is extremely stable and the main drive is via low-maintenance V-belts. The work-piece clamping and the stroke of the saw frame are driven hydraulically.
Features
Rigid dual column frame with column guide for superior stability
Control panel with touchscreen
Hydraulic vise work-piece clamping
Automatic saw blade overload control
Support table with integrated feed rollers
Material feed system with work-piece guide rollers
Fast approaching bar detection of the work-piece height
Standard Equipment
Blade cleaning brush
Working light
One piece of bi-metal saw blade.
One set of tools with tool box
Roller table 2M long
NC control
Inverter controlled blade line speed
Hydraulic blade tension
Automatic chip conveyor
Optional Equipment
| NO. | Spare parts Description | Specification | Function |
| 1 | Work-piece Rack | 2 meter | Take the load of materials |
| 2 | Bi-metallic band saw blade | 41×1.3×5080 mm | Consumables |
| 3 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 4 | Chip conveyor and trolley | CH-650HA | Remove the cutting chips |
| 5 | Hydraulic blade tentioning | CH-650HA | Tension the saw blade hydraulically |
