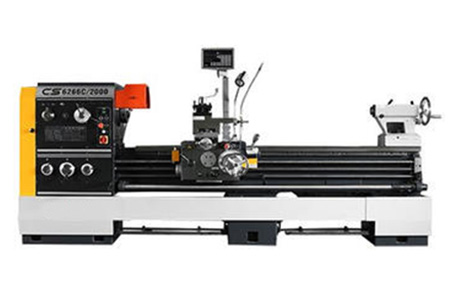

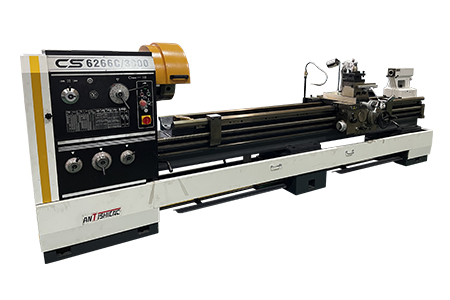

    • CS6266C Series Universal Lathes

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Item Unit Parameter
    CS6266C
    Capacity Max  swing over bed mm Φ660
    Max  swing in gap mm Φ870
    Effective  length in gap mm 240
    Max  swing over slide mm Φ420
    Max  workpiece length mm 1000/1500/2000/3000
    Spindle Spindle Aperture Diameter mm Φ105
    Spindle  nose ISO  702/Ⅱ No.8 cam-lock type
    Spindle  speed r/min 12  step 32-1600
    Spindle  motor kW 7.5
    Tailstock Quill  dia./travel mm φ75/150
    Taper  of center MT 5
    Tool  post Number  of station/Tool  section 4/25X25
    Feed Max  X-axis travel mm 310
    Max  Z-axis travel m/min 145
    X-axis  feed mm/r 65  sorts 0.063-2.52
    Z-axis  feed Z-axis feed mm/r 65  sorts 0.027-1.07
    Metric  thread mm 22  sorts 1-14
    Inch  thread t.p.i 25  sorts 28-2
    Module  thread πmm 18  sorts 0.5-7
    DP  thread t.p.i.  π 24  sorts 56-4
    Others Coolant  pump motor kW 0.06
    Machine  length mm 2632/3132/3632/4632
    Machine  width mm 975
    Machine  height mm 1270
    Machine  weight kg 2200/2400/2600/3000

    Product Introduction:

    1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

    2. Threading Inch, Metric, Module and D.P.;

    3. Perform drilling, boring and groove broaching;

    4. Machine all kinds of flat stocks and those in irregular shapes;

    5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

    6. Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;

    7. There are hand brake and foot brake for users to choose;

    8. These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).

    Standard Equipment
    3-jaw chuck and adapter
    4-jaw chuck and adapter（For CS6266C）
    4-station conventional tool post
    Drive plate
    Faceplate（For CS6266C）
    Steady rest
    Follow rest
    The Full-longitudinal chip guard (Movable type for 3000mm)
    LED work lamp
    Dead center and center sleeve
    Spanner
    Hook spanner
    Oil gun

    Optional Equipment
    Live Center
    Thread chasing dial
    Mechanical feed stop
    Single set feed stop
    Quick change tool post（American /Italy/European type）
    Chuck guard
    Tool-post guard
    Taper turning attachment
    Digital readout（2/3 AXIS）
    Siemens electrical appliances
    Quick release
    Screw protection
